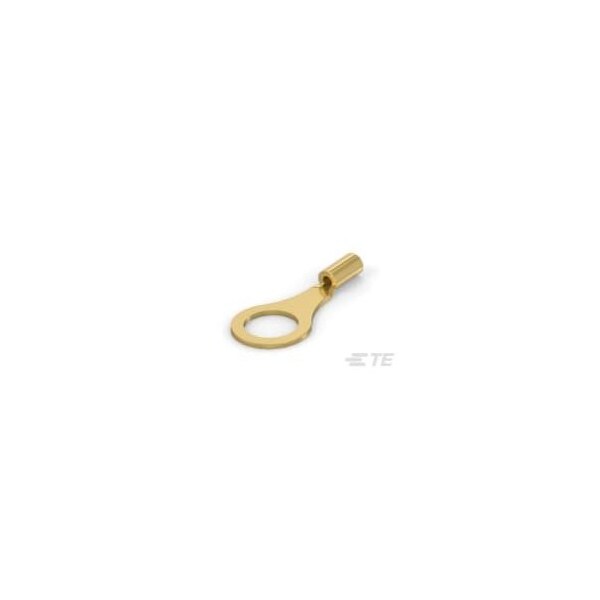

Ring Terminal, #8 Stud Size, 0.4 mm², Bare Insulated
Mfr # 2-32859-5
Zoro # G800942910
product price: $1.69
/eaSold in multiples of 1000 for $1,690.00
Key Features
Terminal Shape
Standard Ring Tongue
Maximum Wire Size
0.4 mm²
Minimum Wire Size
0.12 mm²
Insulation Coverage
None
Insulation Type
Bare
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
2-32859-5
Zoro #
G800942910
UPC #
-
Country of Origin
United States
Dimensions
Maximum Wire Size
0.4 mm²
Minimum Wire Size
0.12 mm²
Stud Size
#8
Overall Length
0.544 in
Barrel Inside Dia.
0.035 in
Details
Item
Ring Terminal
Terminal Shape
Standard Ring Tongue
Insulation Coverage
None
Insulation Type
Bare
Maximum Operating Temperature
170 Degrees C
Wire Type
Stranded, Regular Wire
Seam
Closed Barrel
Terminal Orientation
Straight
Contact Plating Material
Gold, Copper
Description
