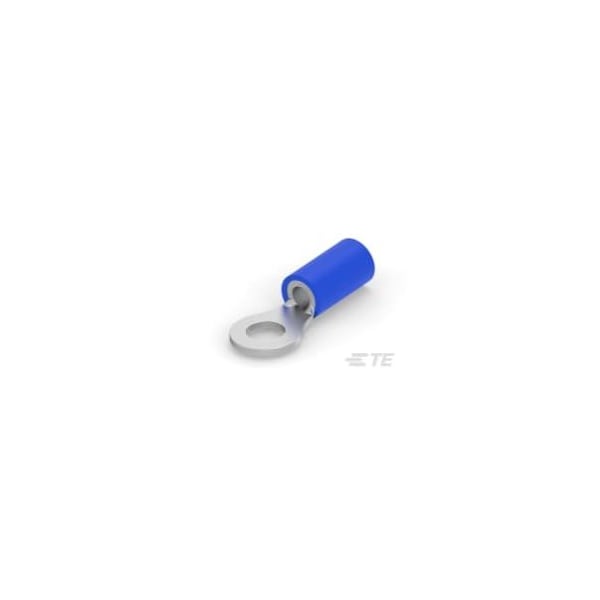

Ring Terminal, #8 Stud Size, 14 AWG, 600 V, Vinyl, PVC Insulated, Blue
- Mfr # 2-328527-1
- Zoro # G800927450
product price:Â
$
0.44
/ea
Sold in multiples of 178 for
$78.32
Key Features
Insulation Color
Blue
Insulation Type
PVC, Vinyl
Maximum Voltage
600 V
Maximum Operating Temperature
221 Degrees F
Features
Wire Insulation Support
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 2-328527-1
- Zoro #
- G800927450
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Maximum Wire Size
- 14 AWG
- Stud Size
- #8
- Barrel Inside Dia.
- 0.195 in
- Overall Length
- 0.8252 in
- Minimum Wire Size
- 16 AWG
Details
- Item
- Ring Terminal
- Insulation Color
- Blue
- Insulation Type
- PVC, Vinyl
- Maximum Voltage
- 600 V
- Maximum Operating Temperature
- 221 Degrees F
- Features
- Wire Insulation Support
- Wire Type
- Solid or Stranded, Regular Wire
- Seam
- Closed Barrel
- Terminal Orientation
- Offset, Straight
- Insulation Dia
- 0.118 to 0.193 in
- Contact Plating Material
- Tin, Copper
- Contact Material
- Copper
- Minimum Operating Temperature
- 0 Degrees F
- Terminal Shape
- Standard Ring Tongue
- Standards
- UL & CSA Listed
- Insulation Coverage
- Partial Coverage
- Termination Style
- Crimp
