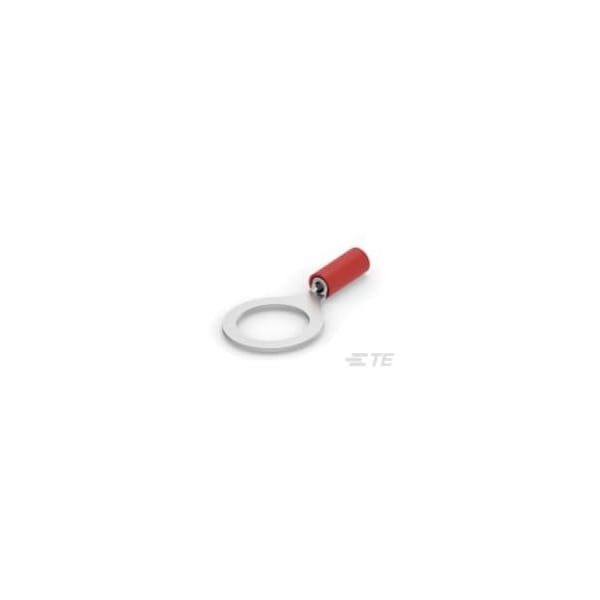

Ring Terminal, M12 Stud Size, 16 AWG, 300 V, Nylon Insulated, Red
- Mfr # 2-328975-2
- Zoro # G200927449
product price:Â
$
2.15
/ea
Sold in multiples of 50 for
$107.50
Key Features
Insulation Color
Red
Maximum Wire Size
16 AWG
Insulation Type
Nylon
Stud Size
M12
Maximum Voltage
300 V
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 2-328975-2
- Zoro #
- G200927449
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Maximum Wire Size
- 16 AWG
- Stud Size
- M12
- Overall Length
- 32.84 mm
- Barrel Inside Dia.
- 0.128 to 0.28 in
- Minimum Wire Size
- 20 AWG
Details
- Item
- Ring Terminal
- Insulation Color
- Red
- Insulation Type
- Nylon
- Maximum Voltage
- 300 V
- Maximum Operating Temperature
- 105 Degrees C
- Wire Type
- Solid or Stranded, Regular Wire
- Seam
- Standard, Closed Barrel
- Features
- Sheared Terminal
- Contact Plating Material
- Copper, Tin
- Insulation Dia
- 0.046 to 0.11 in
- Terminal Orientation
- Straight
- Insulation Coverage
- Partial Coverage
- Standards
- UL & CSA Listed
- Minimum Operating Temperature
- 0 Degrees C
- Terminal Shape
- Standard Ring Tongue
- Contact Material
- Copper
- Termination Style
- Crimp
Documents & Resources
