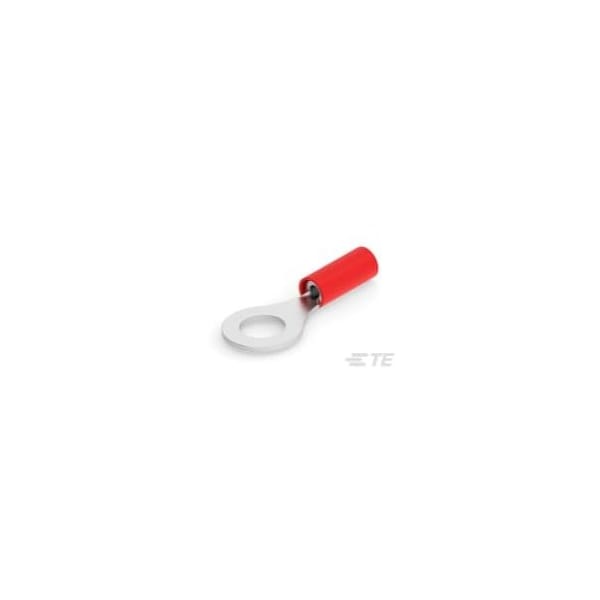

Ring Terminal, M6 Stud Size, 20 AWG, 300 V, Nylon Insulated, Red
Mfr # 2-320571-4
Zoro # G000926925
product price:Â $1.29
/ea
Sold in multiples of 75 for $96.75
Key Features
Terminal Shape
Standard Ring Tongue
Maximum Wire Size
20 AWG
Insulation Type
Nylon
Maximum Voltage
300 V
Maximum Operating Temperature
105 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 2-320571-4
- Zoro #
- G000926925
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Maximum Wire Size
- 20 AWG
- Stud Size
- M6
- Barrel Inside Dia.
- 0.128 in
- Overall Length
- 27.38 mm
- Minimum Wire Size
- 20 AWG
Details
- Item
- Ring Terminal
- Terminal Shape
- Standard Ring Tongue
- Insulation Color
- Red
- Insulation Type
- Nylon
- Maximum Voltage
- 300 V
- Maximum Operating Temperature
- 105 Degrees C
- Wire Type
- Stranded, Regular Wire
- Seam
- Standard, Closed Barrel
- Terminal Orientation
- Straight
- Contact Plating Material
- Copper, Tin
- Insulation Dia
- 0.046 to 0.11 in
- Standards
- UL & CSA Listed
- Contact Material
- Copper
- Minimum Operating Temperature
- 0 Degrees C
- Insulation Coverage
- Partial Coverage
- Termination Style
- Crimp
