Contact our U.S. based teamSpecifications
Product Information
MFR #
3-1393239-4
Zoro #
G501016941
UPC #
-
Country of Origin
Mexico
Details
Item

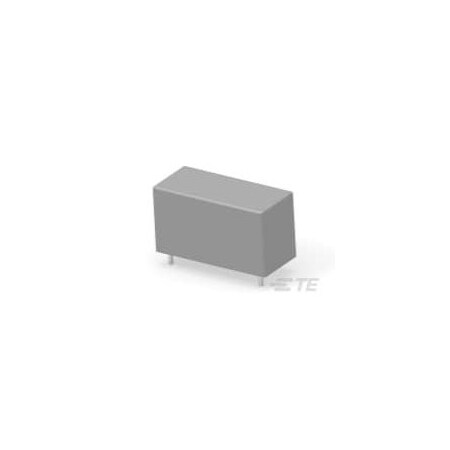

Power Relay
Mounting Style
Printed Circuit Board
Electrical Connection
PCB-THT, Plug-In
Coil Voltage
115V AC
Contact Form
1 Form A (NO)
Power Consumption - Relay
0.76VA
Number of Poles
1
Features
UL Coil Insulation Class F
Contact Material
AgNi90/10
Contact Rating
0A
Insulation Creepage
.394 in
Contact Limiting Making Current
25 A
Contact Limiting Continuous Current
12A
Contact Limiting Breaking Current
12A
Contact Voltage Rating
250 VAC
Operating Temp. Range
50 to 70°C
Coil Type
Monostable, AC
Switching Voltage
400 VAC
Dielectric Voltage
5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Protection Category
RTII
Coil Resistance
8100 Ω
Insulation Clearance
.394 in
Contact Limiting Short-Time Current
12A
