Product Information
MFR #
4-1393239-5
Zoro #
G601018425
UPC #
-
Country of Origin
Austria
Details
Item

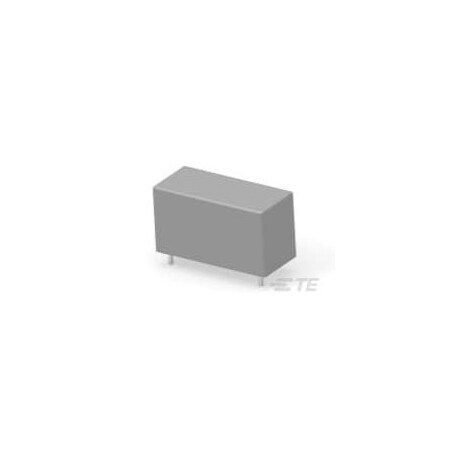

Power Relay
Mounting Style
Printed Circuit Board
Electrical Connection
PCB-THT, Plug-In
Coil Voltage
5V DC
Contact Form
1 Form A (NO)
Power Consumption - Relay
250 mW
Features
Sensitive Version, UL Coil Insulation Class F
Contact Material
AgNi90/10
Number of Poles
1
Contact Limiting Short-Time Current
10A
Insulation Creepage
.394 in
Coil Resistance
100 Ω
Contact Limiting Making Current
15 A
Operating Temp. Range
70 to 85°C
Dielectric Voltage
5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Insulation Clearance
.394 in
Contact Limiting Continuous Current
10A
Contact Voltage Rating
250 VAC
Switching Voltage
400 VAC
Protection Category
RTII
Coil Type
Monostable, DC
Contact Limiting Breaking Current
10A
Contact Rating
0.416666666666667A
