Product Information
MFR #
9-1393243-1
Zoro #
G401018120
UPC #
-
Country of Origin
Austria
Details
Item

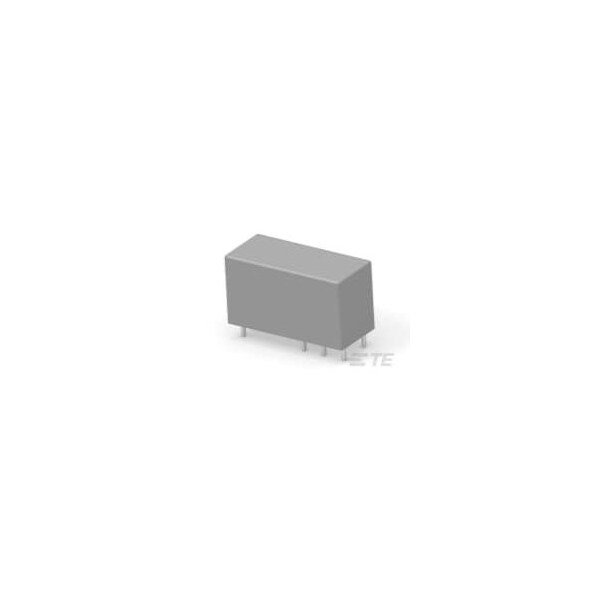

PCB Relay
Mounting Style
Printed Circuit Board, Socket
Electrical Connection
PCB-THT, Plug-In
Coil Voltage
24V AC
Contact Form
2 Form C (CO)
Power Consumption - Relay
0.76VA
Contact Material
AgNi90/10
Features
UL Coil Insulation Class F
Number of Poles
2
Coil Resistance
350 Ω
Coil Type
Monostable, AC
Operating Temp. Range
50 to 70°C
Contact Limiting Making Current
15A
Switching Voltage
400V AC
Contact Limiting Continuous Current
8A
Protection Category
RTII
Insulation Clearance
10 mm [ .394 in ]
Contact Limiting Breaking Current
8A
Insulation Creepage
10 mm [ .394 in ]
Contact Rating
8A
Dielectric Voltage
2500 Vrms Adjacent Contacts; 5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Contact Voltage Rating
250V AC
Contact Limiting Short-Time Current
8A
