Contact our U.S. based teamSpecifications
Product Information
MFR #
3-1419108-6
Zoro #
G501025332
UPC #
-
Country of Origin
China
Details
Item

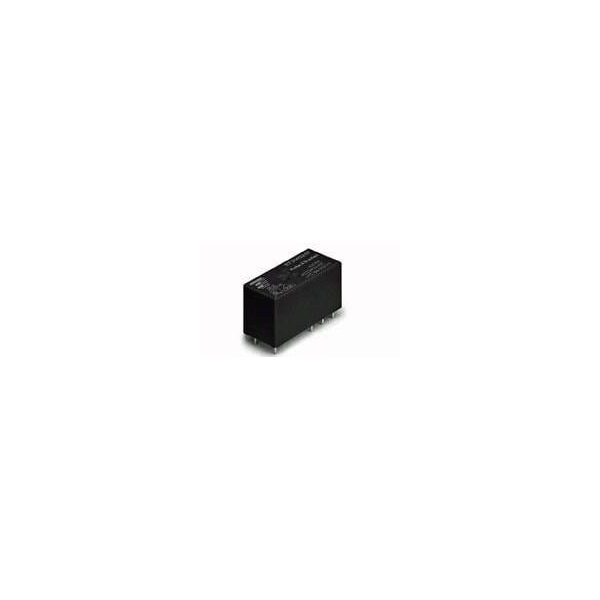

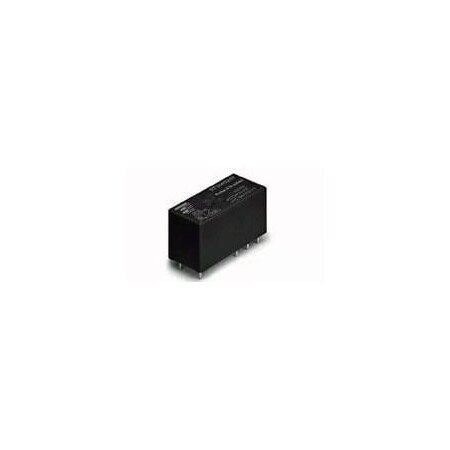

Power Relay
Mounting Style
Socket, Printed Circuit Board
Electrical Connection
PCB-THT, Plug-In
Coil Voltage
12V DC
Contact Form
1 Form A (NO)
Features
UL Coil Insulation Class F
Contact Material
AgNi90/10
Number of Poles
1
Power Consumption - Relay
400 mW
Contact Voltage Rating
250 VAC
Insulation Creepage
.394 in
Contact Limiting Continuous Current
16 A
Contact Limiting Breaking Current
16 A
Dielectric Voltage
5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Protection Category
RTIII
Switching Voltage
400 VAC
Insulation Clearance
.394 in
Coil Type
Monostable, DC
Contact Limiting Making Current
30 A
Operating Temp. Range
85°C
Contact Rating
16 A
Coil Resistance
360 Ω
