Product Information
MFR #
6-1393227-5
Zoro #
G101025572
UPC #
-
Country of Origin
China
Details
Item

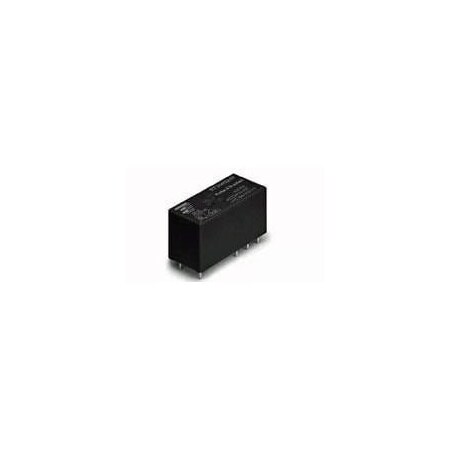

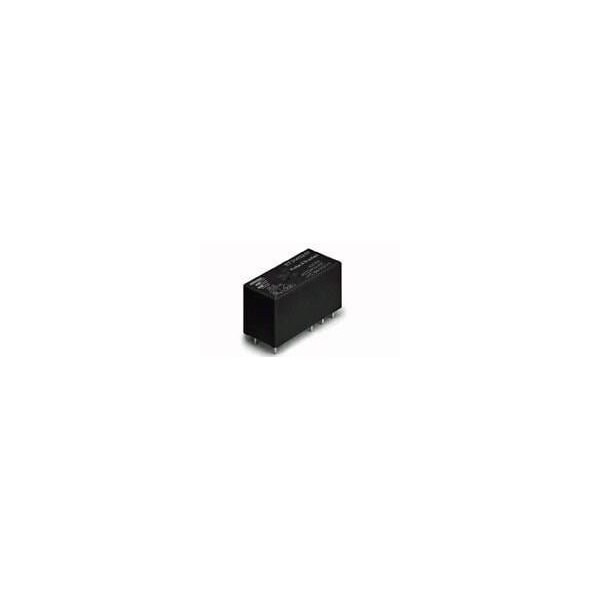

Power Relay
Mounting Style
Socket, Printed Circuit Board
Electrical Connection
PCB-THT, Plug-In
Coil Voltage
6V DC
Contact Form
2 Form C (CO)
Features
UL Coil Insulation Class F
Number of Poles
2
Power Consumption - Relay
400 mW
Contact Material
AgNi90/10
Contact Rating
0.333333333333333A
Switching Voltage
400 VAC
Contact Voltage Rating
250 VAC
Insulation Clearance
.394 in
Contact Limiting Continuous Current
8A
Operating Temp. Range
85°C
Insulation Creepage
.394 in
Protection Category
RTIII
Contact Limiting Breaking Current
8A
Dielectric Voltage
2500 Vrms Adjacent Contacts; 5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Coil Type
Monostable, DC
Contact Limiting Making Current
15 A
Coil Resistance
90 Ω
