Product Information
MFR #

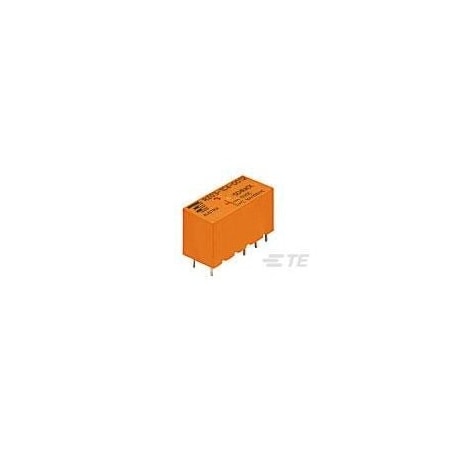

1-1415899-8
Zoro #
G801026220
UPC #
-
Country of Origin
Mexico
Details
Item
PCB Relay
Mounting Style
PCB
Electrical Connection
PCB-THT
Coil Voltage
48V DC
Contact Form
1 Form A (NO)
Contact Material
AgNi90/10
Features
UL Coil Insulation Class F
Number of Poles
1
Power Consumption - Relay
400 mW
Coil Resistance
5730 Ω
Contact Limiting Continuous Current
16A
Insulation Clearance
10 mm [ .394 in ]
Contact Voltage Rating
250V AC
Contact Limiting Making Current
30A
Switching Voltage
400V AC
Contact Rating
16A
Contact Limiting Breaking Current
16A
Protection Category
RTII
Dielectric Voltage
5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Insulation Creepage
10 mm [ .394 in ]
Operating Temp. Range
70 to 85°C
Coil Type
Monostable, DC
Contact Limiting Short-Time Current
16A
