Product Information
MFR #
2-1415899-9
Zoro #
G301026454
UPC #
-
Country of Origin
Austria
Details

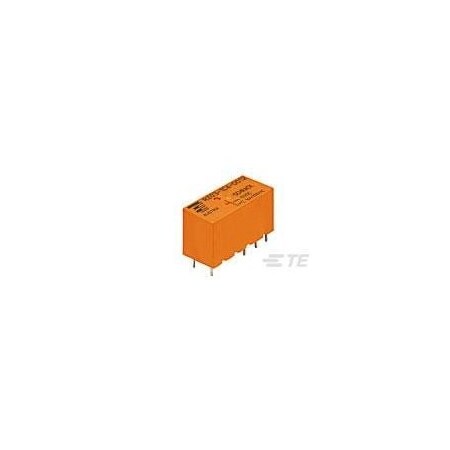

Item
PCB Relay
Mounting Style
PCB
Electrical Connection
PCB-THT
Coil Voltage
24V DC
Contact Form
1 Form A (NO)
Number of Poles
1
Power Consumption - Relay
400 mW
Contact Material
AgNi90/10
Features
UL Coil Insulation Class F
Insulation Clearance
10 mm [ .394 in ]
Coil Type
Monostable, DC
Switching Voltage
400V AC
Contact Limiting Breaking Current
16A
Protection Category
RTII
Insulation Creepage
10 mm [ .394 in ]
Contact Voltage Rating
250V AC
Contact Limiting Short-Time Current
16A
Operating Temp. Range
85 to 105°C
Dielectric Voltage
5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Contact Limiting Making Current
30A
Contact Limiting Continuous Current
16A
Coil Resistance
1440 Ω
Contact Rating
16A
