  13. Safety Relay, 6Pst, Momentary, 0.033A (Coil), 24Vdc (Coil), 800Mw (Coil), 8A (Contact), Dc Input,

This item is Discontinued.

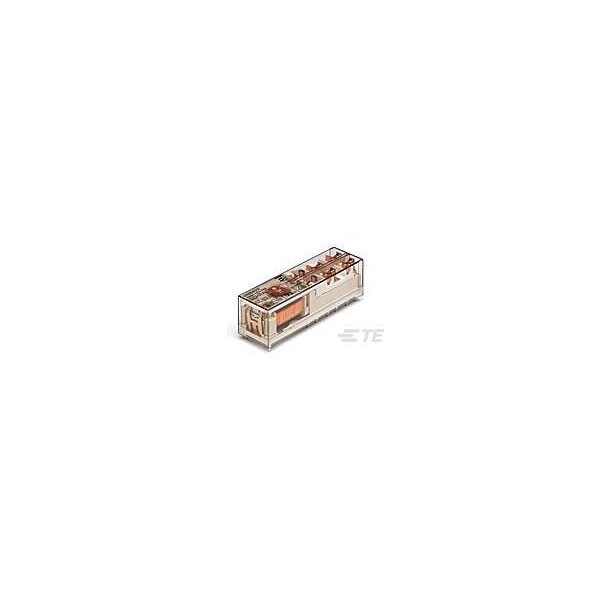

Te Connectivity Safety Relay, 6Pst, Momentary, 0.033A (Coil), 24Vdc (Coil), 800Mw (Coil), 8A (Contact), Dc Input, 8-1415537-0

Safety Relay, 6Pst, Momentary, 0.033A (Coil), 24Vdc (Coil), 800Mw (Coil), 8A (Contact), Dc Input, (Discontinued)

  • Mfr # 8-1415537-0
  • Zoro # G505944851
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8-1415537-0
Zoro #
G505944851
UPC #
-
Country of Origin
Czechia

Dimensions

Width
16.51 mm [ .65 in ]
Height
16.5 mm [ .65 in ]
Length
55 mm [ 2.167 in ]
Width Class (Mechanical)
16 to 20 mm
Length Class (Mechanical)
50 to 60 mm

Details

Coil Resistance (Ω)
720
Insulation Initial Dielectric Between Adjacent Contacts (Vrms)
3000
Contact Current Class
5 to 10 A
Insulation Initial Dielectric Between Open Contacts (Vrms)
1500
Contact Voltage Rating (VAC)
250
Contact Limiting Short-Time Current (A)
8
Coil Voltage Rating (VDC)
24
Contact Number of Poles
6
Insulation Initial Dielectric Between Coil/Contact Class
3500 to 4000 V
Relay Type
Force Guided Relay SR6 A/B/C/V
Contact Current Rating (A)
8
Insulation Clearance Between Contact and Coil
5.5 mm [ .217 in ]
Contact Limiting Making Current (A)
8
Environmental Ambient Temperature Class
-25 to 70°C
Contact Material
AgSnO2
Insulation Creepage Between Contact and Coil
5.5 mm [ .217 in ]
Environmental Category of Protection
RTIII
Contact Limiting Breaking Current (A)
8
Coil Magnetic System
Monostable, DC
Coil Power Rating (DC) (mW)
800
Contact Switching Load (Min)
10mA @ 5V
Coil Current
33.333
Terminal Type
PCB-THT
Environmental Ambient Temperature (Max)
70 °C [ 158 °F ]
Mounting Type
Printed Circuit Board
Contact Switching Voltage (Max) (VAC)
400
Contact Arrangement
4 Form A (NO) + 2 Form B (NC)
Coil Power Rating Class (mW)
600 to 800
Insulation Clearance Class
5 to 8 mm
Contact Special Features
Force Guided Contacts
Product Type
Relay
Contact Limiting Continuous Current (A)
8
Insulation Initial Dielectric Between Contacts and Coil (Vrms)
4000
Insulation Creepage Class
3 to 5.5 mm
Contact Plating Material
Gold Flash

Description

Safety Relay, 6Pst, Momentary, 0.033A (Coil), 24Vdc (Coil), 800Mw (Coil), 8A (Contact), Dc Input, Random, Panel Mount
