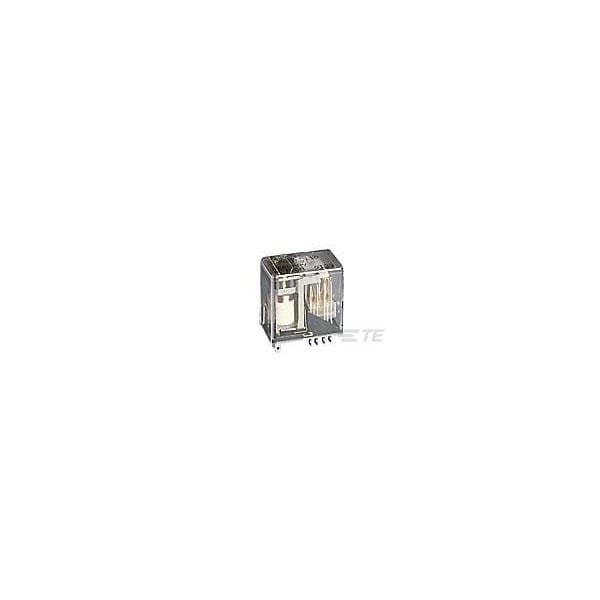

Screw, Socket, Power Relay, 5 A, 4 Pins, Solder
- Mfr # 6-1393817-4
- Zoro # G005866004
product price:Â
$
372.99
/ea
Free Shipping & Returns
Key Features
Mounting Style
Screw, Socket
Electrical Connection
Solder
Number of Pins
4
Coil Voltage
150V DC
Current Rating
5 A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 6-1393817-4
- Zoro #
- G005866004
- UPC #
- -
- Country of Origin
- Mexico
Details
- Item
- Power Relay
- Mounting Style
- Screw, Socket
- Electrical Connection
- Solder
- Number of Pins
- 4
- Coil Voltage
- 150V DC
- Current Rating
- 5 A
- Contact Rating (DC)
- 2 A @ 150V DC
- Features
- Bifurcated/Twin Contacts; Standard Type
- Number of Poles
- 4
- Power Consumption - Relay
- 1500 mW
- Contact Material
- Ag
- Contact Limiting Making Current
- 2A
- Operating Temp. Range
- -40 to 70 °C
- Protection Category
- RTI
- Contact Voltage Rating
- 125 VAC [ 150 VDC ]
- Switching Voltage
- 125 VAC [ 150 VDC ]
- Contact Rating
- 2A
- Dielectric Voltage
- 500 Vrms Adjacent Contacts; 500 Vrms Open Contacts
- Coil Resistance
- 1400 Ω
- Contact Limiting Continuous Current
- 2A
- Contact Limiting Short-Time Current
- 2A
- Coil Type
- Bistable, 2 Coils, Polarized
- Contact Limiting Breaking Current
- 2A
Description
Power/Signal Relay, 4 Form C, 4Pdt, Latched, 0.034A (Coil), 150Vdc (Coil), 914Mw (Coil), 2A (Contact), 150Vdc (Contact), Ac/Dc Input, Ac/Dc Output, Socket Mount
