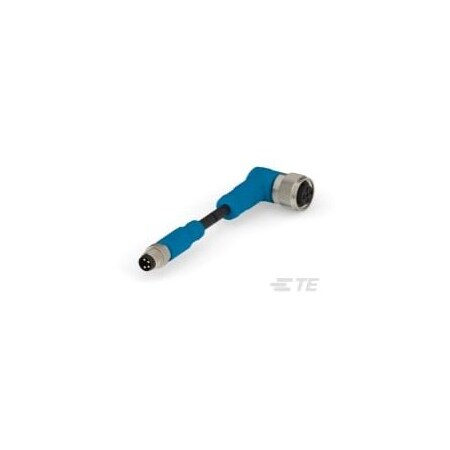

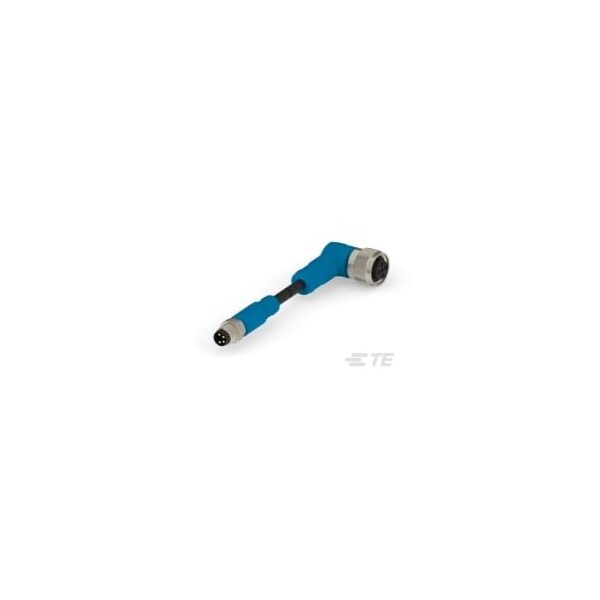

Sensor Cables / Actuator Cables M8-4Ms-5.0 M12-4Fr-Pvc (Discontinued)
- Mfr # T4052118004-005
- Zoro # G205904209
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
T4052118004-005
Zoro #
G205904209
UPC #
-
Country of Origin
China
Dimensions
Wire Size
24 AWG
Overall Outside Cable Diameter
4.5 mm
Thread Size
M8 x M12
Cable Assembly Length
5000 mm
Details
Jacket Color
Black
Insulation Material
PVC
Conductor Material
Copper Alloy
Housing Material
GF Nylon
Connector Type
Plug/Receptacle
Wire Color
Brown-White-Blue-Black
Configuration
Double-Ended
Contact Current Rating
3A
Operating Temperature Range
-25 to 85°C
Cable Color
Black
Number of Positions
4
Product Type
Cable Assembly
Cable Assembly Type
M8 to M12
LED
Without
Shielded
No
Operating Voltage
30 VDC, 30 VAC
Assembly Type
Pigtail
Connector Color
Blue
Keying
A
Cable Type
PVC
