  11. SKT HDR ASSY 36 POSN METRIMATE
This item is Discontinued.

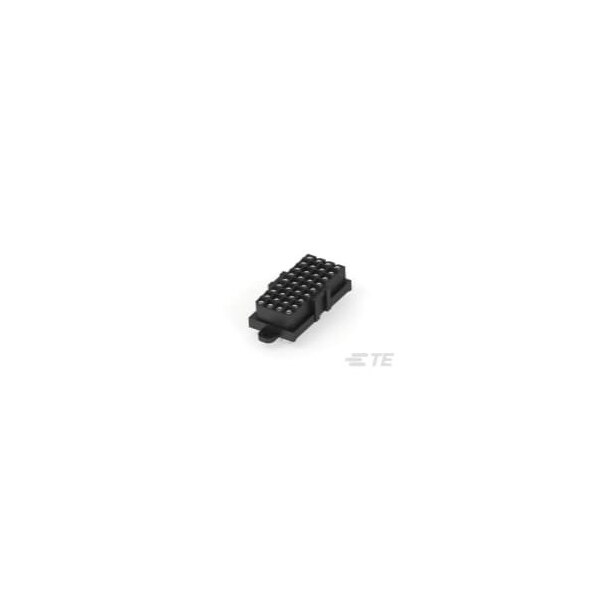

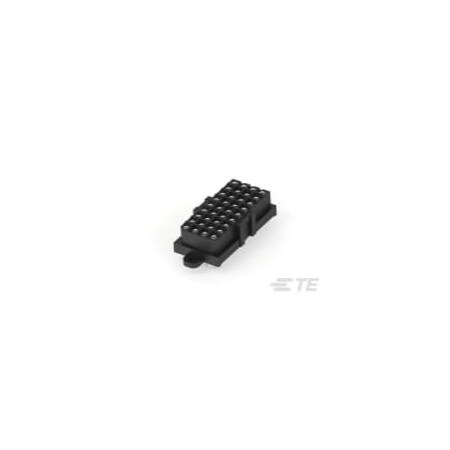

Te Connectivity SKT HDR ASSY 36 POSN METRIMATE 207534-8

SKT HDR ASSY 36 POSN METRIMATE (Discontinued)

  • Mfr # 207534-8
  • Zoro # G000939499
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
207534-8
Zoro #
G000939499
UPC #
-
Country of Origin
Mexico

Dimensions

Width
25.55 mm
Height
14.35 mm
Length
62.31 mm

Details

Item
Connector
Type
Header
Wire Connector Style
Square Grid
Color
Red
Insulation Material
Nylon
Max. Voltage
600V AC/DC
Maximum Voltage
600 V AC/DC
Current
7.5 A
Standards
CSA Certified; UL E28476; UL Certified and Recognized
Maximum Operating Temperature
130 Degrees C
UL 94 Flammability Rating
V-0
For Use With
Receptacle Housing
Terminal Type
Through Hole - Solder
Hole Center to Center
0.197 in
Connector Type
Header
Max. Temp.
130°C
Material
Nylon
Number of Contacts
36
Number of Rows
9
Current Rating
7.5 A
Contact Type
Socket
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-0
Terminal Finish
Tin Plated
Termination Style
Through Hole - Solder
