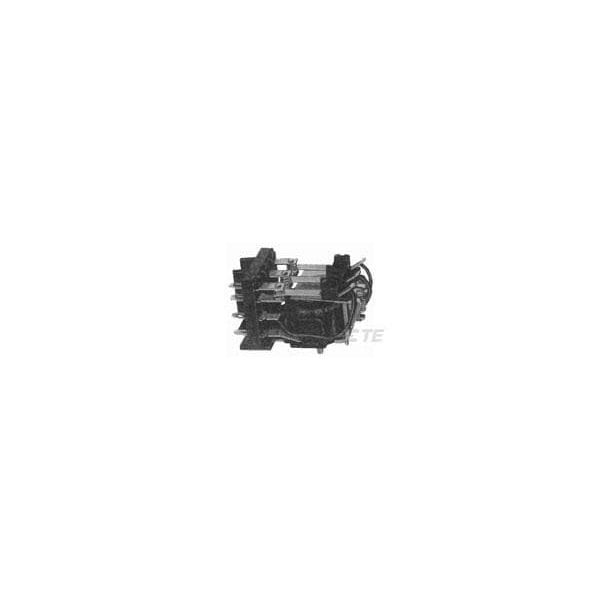

Te Connectivity Socket, General Purpose Relay, 10 A, Solder, Quick Connect 4-1393110-4 - main

Socket, General Purpose Relay, 10 A, Solder, Quick Connect

  • Mfr # 4-1393110-4

  • Zoro # G700975759

product price:  $39.69
/ea
Sold in multiples of 4 for $158.76

Key Features

Mounting Style
Socket
Electrical Connection
Solder, Quick Connect
Coil Voltage
120V AC
Current Rating
10 A
Contact Material
AgCdO
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4-1393110-4
Zoro #
G700975759
UPC #
-
Country of Origin
Mexico

Dimensions

Product Height
1.905 in
Product Length
1.53 in
Product Width
1.405 in
Length Class (Mechanical)
35 to 40 mm
Height Class (Mechanical)
40 to 50 mm
Width Class (Mechanical)
30 to 40 mm

Details

Item
General Purpose Relay
Mounting Style
Socket
Electrical Connection
Solder, Quick Connect
Coil Voltage
120V AC
Current Rating
10 A
Contact Material
AgCdO
Power Relay Type
Industrial Panel Plug-In
Contact Current Rating (Max)
10A
Contact Voltage Rating
240 VAC
Insulation Initial Dielectric Between Contacts & Coil
2200 Vrms
Contact Switching Load (Min)
300mA @ 12V
Environmental Ambient Temperature (Max)
55°C
Operating Temperature Range
-40 to 55°C
Actuating System
AC
Contact Arrangement
1 Form C (CO)
Contact Number of Poles
1
Contact Current Class
5 to 10 A, 16 A
Insulation Initial Dielectric Between Coil & Contact Class
1500 to 2500 V
Insulation Initial Dielectric Between Adjacent Contacts
2200 Vrms
Insulation Initial Dielectric Between Open Contacts
1200 Vrms
Coil Special Features
UL Coil Insulation Class B
Insulation Initial Resistance
100 MΩ
Environmental Category of Protection
RTI
Coil Power Rating Class
2 to 3 VA
Coil Magnetic System
Monostable, AC
Environmental Ambient Temperature Class
50 to 70°C
Coil Resistance
1700 Ω
Coil Power Rating AC
2 VA
Number of Pins
5
Contact Rating (DC)
10 A @ 32V, 0.5 A @ 125V
Contact Rating (AC)
10 A @ 240V, 5 A @ 120V
Base Shape
Square
Contact Form
1 Form C (1 CO)
