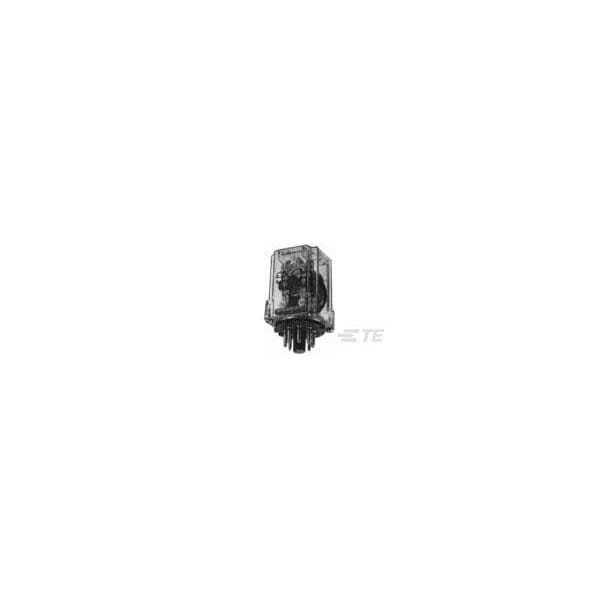

Socket, Power Relay, 2 Pins, Plug-in
Mfr # 7-1393101-6
Zoro # G405865980
product price:Â
$
102.99
/ea
Free Shipping & Returns
Key Features
Mounting Style
Panel Mount
Electrical Connection
Plug In
Number of Pins
2
Coil Voltage
12V AC
Contact Rating (AC)
10 A @ 240V
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 7-1393101-6
- Zoro #
- G405865980
- UPC #
- -
- Country of Origin
- Mexico
Details
- Item
- Power Relay
- Mounting Style
- Panel Mount
- Electrical Connection
- Plug In
- Number of Pins
- 2
- Coil Voltage
- 12V AC
- Contact Rating (AC)
- 10 A @ 240V
- Power Consumption - Relay
- 2.02VA
- Contact Material
- AgCdO
- Features
- UL Coil Insulation Class B
- Number of Poles
- 2
- Operating Temp. Range
- -45 to 55°C
- Dielectric Voltage
- 1000 Vrms Adjacent Contacts; 1000 Vrms, 1000 V Coil and Contact; 1000 Vrms Open Contacts
- Switching Current
- 300mA @ 12V
- Protection Category
- RTI
- Coil Resistance
- 24 Ω
- Contact Rating
- 0.416666666666667A
- Contact Voltage Rating
- 240 VAC
- Coil Type
- Monostable, AC
- Current Rating
- 10 A
- Base Shape
- Octal
- Contact Form
- 2 Form C (CO)
Description
Power/Signal Relay, Dpdt, Momentary, 2000Mw (Coil), 10A (Contact), Ac Input, Ac/Dc Output, Socket Mount
