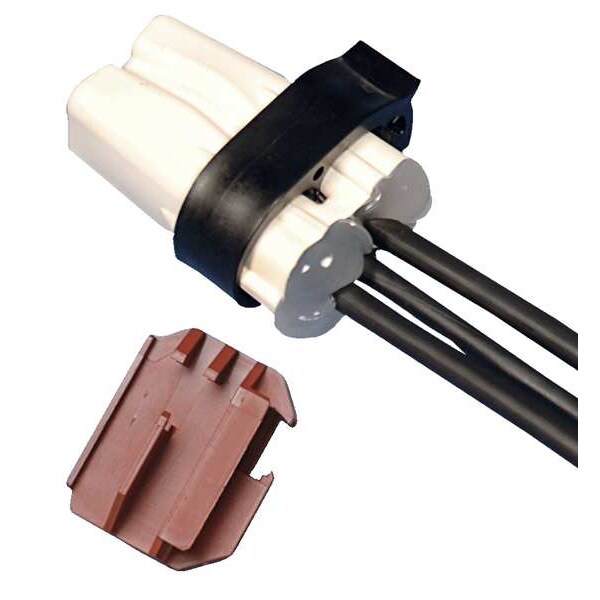

Splice Kits, 16 to 10 AWG, 221F, Wht, 1000V (Discontinued)
- Mfr # GELCAP-1(B5)
- Zoro # G3622841
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
GELCAP-1(B5)
Zoro #
G3622841
UPC #
-
Country of Origin
Mexico
Dimensions
Overall Length
3 in
Barrel Length
0.5 in
Wire Size Range
16 AWG - 10 AWG
For Wire Size
10 AWG, 12 AWG, 14 AWG, 16 AWG
Minimum Wire Size
16 AWG
Maximum Wire Size
10 AWG
Details
Item
Splice Kit
Wire Range
16 to 10 AWG
Material
Polymer Splice with Silicone Jacket
Temp. Range
-40 Degrees F to 221 Degrees F
Color
White
Max. Voltage
1,000 V
Max. Temp.
221 Degrees F
Standards
ANSI C119.1 Rated, UL Listed
Voltage Rating
1000V
Compatible with Product Type
Motor Connections
RoHS Compliant
Yes
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
221 Degrees F
Maximum Voltage
1,000 V
Body Finish
Silicone Gel
Special Features
Moisture Seal
Resistance Properties
Abrasion-Resistant, Chemical-Resistant, Environmental-Resistant, Fire-Resistant, UV-Resistant
Termination Style
Splice
Description
Splice Kit, Body Finish Silicone Gel, Color White, Compatible with Product Type Motor Connections, Heat Shrink Material Not Applicable, Minimum Operating Temperature -40 Degrees F, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 1,000 V, Minimum Wire Size 16 AWG, Maximum Wire Size 10 AWG, RoHS Compliant Yes, Standards ANSI C119.1 Rated, UL Listed, Termination Style Splice, Barrel Length 0.5 in
