  13. SR6B4060 - V23050-A1060-A542
This item is Discontinued.

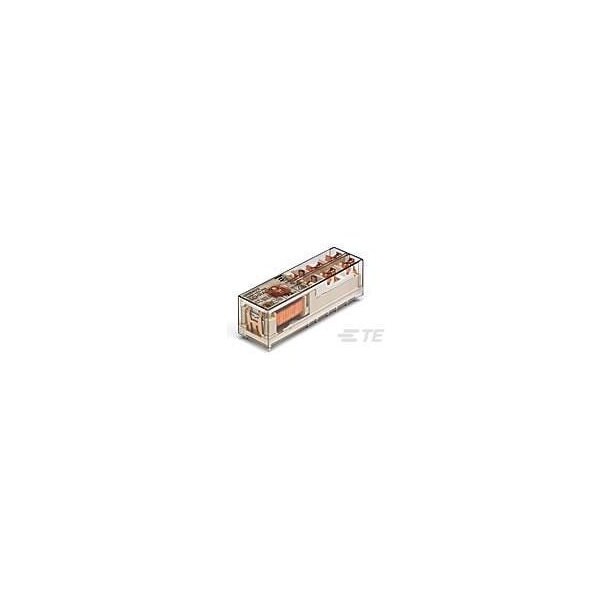

Te Connectivity SR6B4060 - V23050-A1060-A542 1-1393260-1

SR6B4060 - V23050-A1060-A542 (Discontinued)

  • Mfr # 1-1393260-1
  • Zoro # G800973488
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-1393260-1
Zoro #
G800973488
UPC #
-
Country of Origin
Czechia

Dimensions

Product Length
2.167 in
Product Height
.65 in
Height Class (Mechanical)
16 to 20 mm
Product Width
.65 in
Width Class (Mechanical)
16 to 20 mm
Length Class (Mechanical)
50 to 60 mm

Details

Contact Arrangement
4 Form A (NO) + 2 Form B (NC)
Environmental Ambient Temperature Class
-25 to 70°C
Contact Limiting Short-Time Current
8A
Coil Current
20 A
Contact Limiting Making Current
8A
Insulation Initial Dielectric Between Contacts & Coil
4000 Vrms
Coil Resistance
3000 Ω
Contact Switching Load (Min)
10mA @ 5V
Contact Material
AgSnO2
Contact Limiting Continuous Current
8A
Contact Current Rating (Max)
8A
Insulation Creepage Class
3 to 5.5 mm
Environmental Category of Protection
RTIII
Insulation Initial Dielectric Between Open Contacts
1500 Vrms
Contact Number of Poles
6
Coil Magnetic System
Monostable, DC
Relay Mounting Type
Printed Circuit Board
Insulation Creepage Between Contact & Coil
.217 in
Insulation Clearance Between Contact & Coil
.217 in
Contact Current Class
5 to 10 A
Contact Voltage Rating
250 VAC
Terminal Type
PCB-THT
Insulation Initial Dielectric Between Coil & Contact Class
3500 to 4000 V
Coil Power Rating Class
1000 to 1500 mW
Insulation Initial Dielectric Between Adjacent Contacts
3000 Vrms
Power Relay Type
Force-Guided
Contact Limiting Breaking Current
8A
Coil Power Rating DC
1200 mW
Coil Voltage Rating
60 VDC
Environmental Ambient Temperature (Max)
70°C
Contact Switching Voltage (Max)
400 VAC
Insulation Clearance Class
5 to 8 mm
Contact Special Features
Force Guided Contacts
