Contact our U.S. based teamSpecifications
Product Information
MFR #
6-1761614-2
Zoro #
G001068921
UPC #
-
Country of Origin
China
Dimensions
Height
12.95 mm
Contact Plating Thickness
0.76 µm
Details
Item

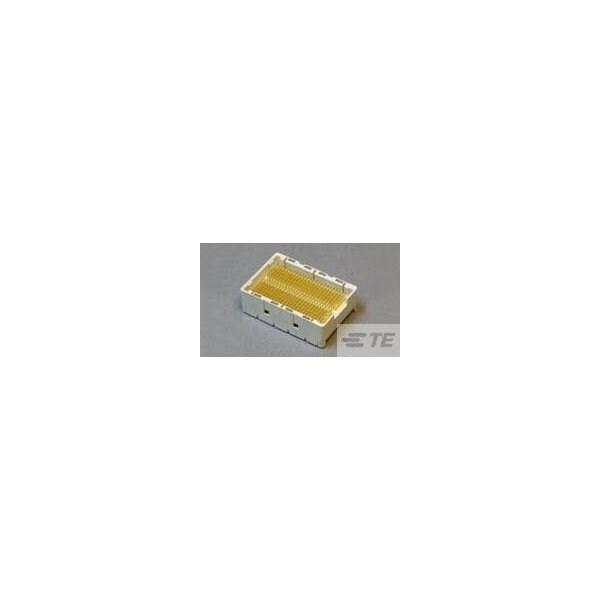

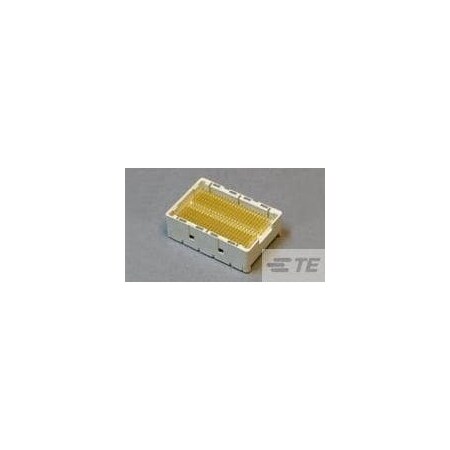

PCB Mount Header
Max. Voltage
48V AC
Max. Temp.
100°C
Application
Signal
For Use With
Receptacle Assembly
Material
Thermoplastic
Hole Center to Center
1.3 mm
Current Rating
1 A
Terminal Type
Through Hole - Solder
Number of Rows
18
Number of Contacts
200
Connection Material
Copper Alloy
Contact Finish
Gold Plated
Connector Terminates To
Printed Circuit Board
Terminal Finish
Tin-Silver Plated
Contact Type
Tab
