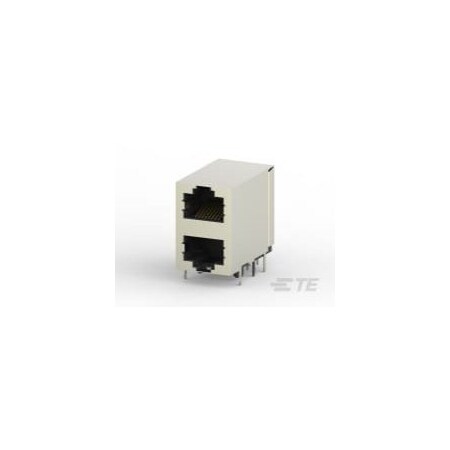

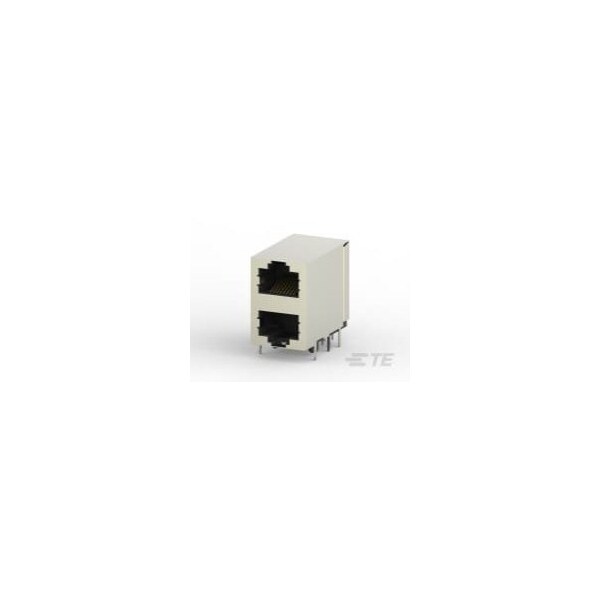

Te Connectivity STK MJ 8POS 2X1 SHLD CAT5 5569380-1

STK MJ 8POS 2X1 SHLD CAT5 (Discontinued)

  • Mfr # 5569380-1
  • Zoro # G901034743
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5569380-1
Zoro #
G901034743
UPC #
-
Country of Origin
China

Dimensions

Connector Height
.994 in
PCB Thickness (Recommended)
.062 in
PCB Tail Length
.14 in
Contact Mating Area Plating Material Thickness
50µin

Details

Number of Positions
8
Connectors & Connector Components Type
Connector
Connector Contact Density
Standard
Keyed
No
Operating Temperature Range
-40 to 185°F
Contact Current Rating (Max)
1.5 A, .2 A
Modular Jack & Plug Interface Type
RJ45
Port Configuration
Multiple Ports
Housing Material
PCT Polyester
Number of PCB Ground Tabs
6
Profile
Low
Grounding Options
PCB Ground
Connector Product Type
Connector Assembly
Panel Mount Feature
Without
Contact Mating Area Plating Material
Gold
Grounding Tab Plating Material
Tin over Copper
Shield Plating Material
Tin over Copper
UL Flammability Rating
UL 94V-0
Contact Base Material
Phosphor Bronze
Connector & Contact Terminates To
Printed Circuit Board
Number of Contacts Loaded
8
Circuit Application
Signal
Status Indicator
None
Shielded
Yes
Shield Material
Copper Alloy
Multiple Port Configuration
Stacked
Latch Orientation
Standard - Latch Down
Housing Color
Black
Centerline (Pitch)
.04 in
Connector Style
Jack
Modular Jacks & Plugs Products
RJ Type Jacks & Plugs
Connector Mounting Type
Panel, Board Mount
Performance Category
Cat 5
Entry Location
Side
Port Matrix Configuration
2 x 1
PCB Mount Orientation
Right Angle
Contact Underplating Material
Nickel
PCB Contact Termination Area Plating Material
Tin
Termination Method to Printed Circuit Board
Through Hole - Solder
