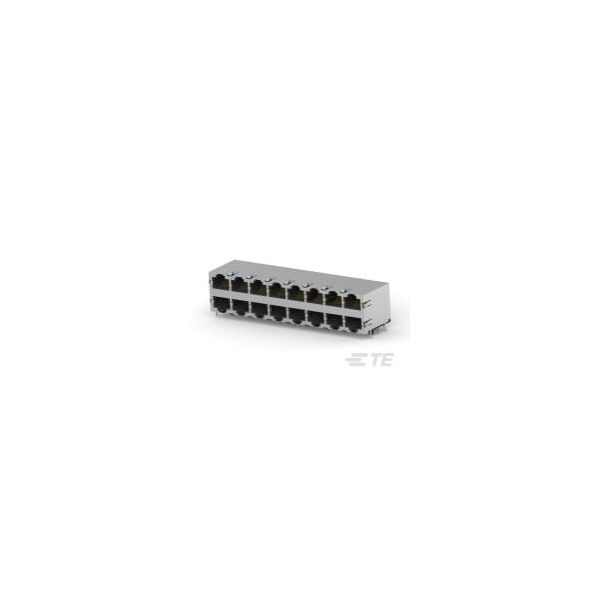

Te Connectivity STK MJ 8POS 2X8 SHLD CAT5 5569264-1

STK MJ 8POS 2X8 SHLD CAT5 (Discontinued)

  • Mfr # 5569264-1
  • Zoro # G201034801
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5569264-1
Zoro #
G201034801
UPC #
-
Country of Origin
China

Dimensions

Connector Height
.995 in
PCB Thickness (Recommended)
.062 in
PCB Tail Length
.14 in
Contact Mating Area Plating Material Thickness
50µin

Details

Number of Positions
8
Centerline (Pitch)
.04 in
Number of Contacts Loaded
8
Profile
Low
Number of PCB Ground Tabs
6
Port Configuration
Multiple Ports
Keyed
No
Contact Mating Area Plating Material
Gold
Modular Jacks & Plugs Products
RJ Type Jacks & Plugs
PCB Mount Orientation
Right Angle
Grounding Tab Plating Material
Tin over Copper
Multiple Port Configuration
Stacked
Latch Orientation
Standard - Latch Down
Panel Mount Feature
Without
Termination Method to Printed Circuit Board
Through Hole - Solder
Connector Style
Jack
Housing Color
Black
Modular Jack & Plug Interface Type
RJ45
PCB Contact Termination Area Plating Material
Tin
Operating Temperature Range
-40 to 185°F
Grounding Options
PCB and Panel Ground
Connectors & Connector Components Type
Connector
Port Matrix Configuration
2 x 8
Status Indicator
None
Connector Contact Density
Standard
Performance Category
Cat 5
Contact Base Material
Phosphor Bronze
Connector & Contact Terminates To
Printed Circuit Board
Connector Mounting Type
Board Mount, Panel
UL Flammability Rating
UL 94V-0
Contact Current Rating (Max)
1.5 A, .2 A
Circuit Application
Signal
Entry Location
Side
Housing Material
PCT Polyester
Shield Plating Material
Tin over Copper
Shield Material
Copper Alloy
Shielded
Yes
Contact Underplating Material
Nickel
Connector Product Type
Connector Assembly
