This item is Discontinued.

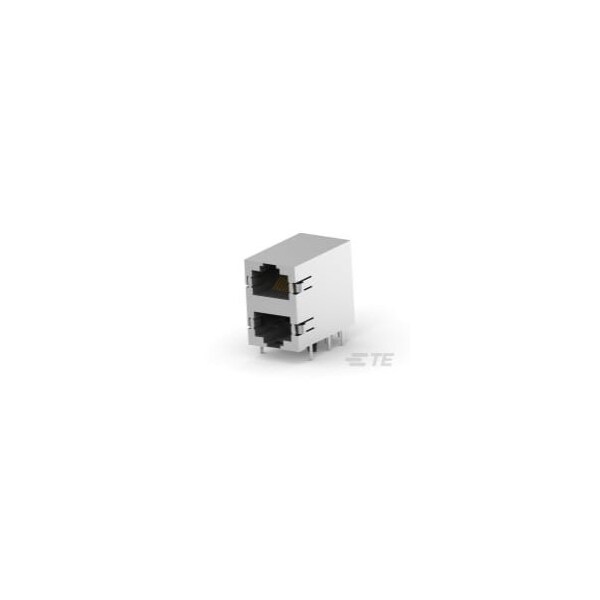

Te Connectivity STK MJ ASSY 8POS 2X1 SHLD CAT5 5569381-1

STK MJ ASSY 8POS 2X1 SHLD CAT5 (Discontinued)

  • Mfr # 5569381-1
  • Zoro # G501034105
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5569381-1
Zoro #
G501034105
UPC #
-
Country of Origin
China

Dimensions

Connector Height
.994 in
PCB Thickness (Recommended)
.062 in
Contact Mating Area Plating Material Thickness
50µin
PCB Tail Length
.14 in

Details

Number of Positions
8
Keyed
No
Shielded
Yes
Grounding Tab Plating Material
Tin over Copper
Number of Contacts Loaded
8
PCB Contact Termination Area Plating Material
Tin
Connector Contact Density
Standard
Grounding Options
PCB and Panel Ground
Profile
Low
Connectors & Connector Components Type
Connector
Contact Base Material
Phosphor Bronze
Status Indicator
None
Entry Location
Side
Operating Temperature Range
-40 to 185°F
Circuit Application
Signal
Shield Plating Material
Tin over Copper
Housing Material
PCT Polyester
Centerline (Pitch)
.04 in
Port Configuration
Multiple Ports
Port Matrix Configuration
2 x 1
UL Flammability Rating
UL 94V-0
Housing Color
Black
Connector Style
Jack
Contact Underplating Material
Nickel
Modular Jacks & Plugs Products
RJ Type Jacks & Plugs
Shield Material
Copper Alloy
PCB Mount Orientation
Right Angle
Performance Category
Cat 5
Modular Jack & Plug Interface Type
RJ45
Number of PCB Ground Tabs
6
Connector Product Type
Connector Assembly
Termination Method to Printed Circuit Board
Through Hole - Solder
Multiple Port Configuration
Stacked
Contact Mating Area Plating Material
Gold
Connector & Contact Terminates To
Printed Circuit Board
Contact Current Rating (Max)
1.5 A, .2 A
Latch Orientation
Standard - Latch Down
Panel Mount Feature
Without
Connector Mounting Type
Board Mount, Panel
