  9. STK MJ ASSY 8POS 2X2 CAT5E
This item is Discontinued.

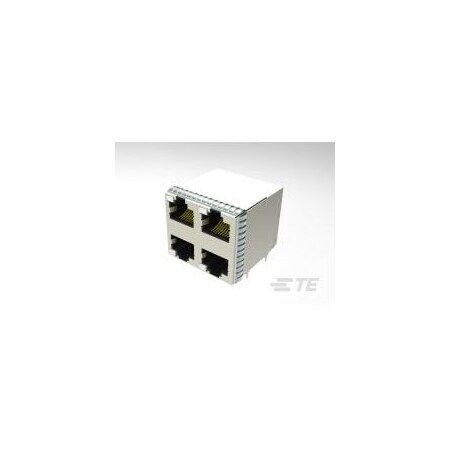

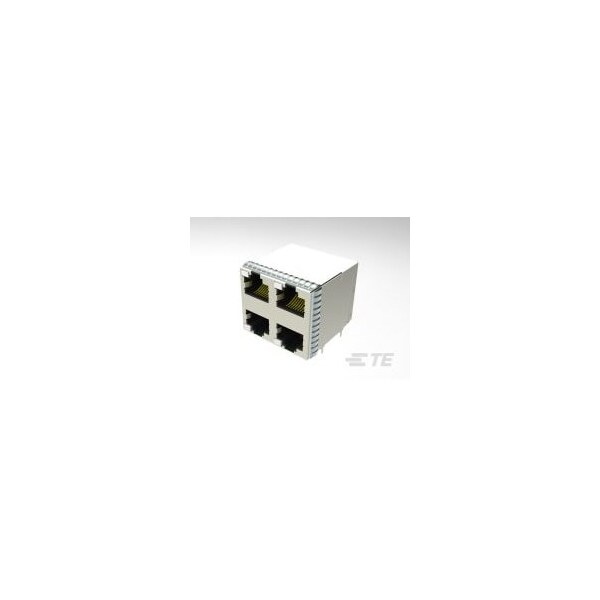

Te Connectivity STK MJ ASSY 8POS 2X2 CAT5E 2303402-1

STK MJ ASSY 8POS 2X2 CAT5E (Discontinued)

  • Mfr # 2303402-1
  • Zoro # G901034330
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2303402-1
Zoro #
G901034330
UPC #
-
Country of Origin
China

Dimensions

Contact Mating Area Plating Material Thickness
30µin
PCB Tail Length
.088 in
Connector Height
1.4409 in
PCB Thickness (Recommended)
.063 in

Details

Number of Positions
8
Shield Plating Finish
Bright
Contact Current Rating (Max)
1.5 A
Port Configuration
Multiple Ports
Keyed
No
Modular Jacks & Plugs Products
RJ Type Jacks & Plugs
PCB Ground Tab Location
.41 in, 10.41 mm
Number of PCB Ground Tabs
4
Termination Method to Printed Circuit Board
Through Hole - Press-Fit
Grounding Options
PCB and Panel Ground
Panel Ground Location
Sides
Connector Product Type
Connector Assembly
Entry Location
Side
Performance Category
Cat 5e
Latch Orientation
Inverted (Top) / Standard (Bottom)
Contact Mating Area Plating Material
Gold over Nickel
Housing Color
Black
Shielded
Yes
Connector Style
Jack
UL Flammability Rating
UL 94V-0
LED Color (Bottom Left)
Green/Red
Port Matrix Configuration
2 x 2
Number of Contacts Loaded
8
Shield Plating Material
Copper Preplated with Nickel
Housing Material Temperature
Standard
Shield Panel Ground Type
Shield has bottom panel grounds.
Circuit Application
Signal
LED Color (Bottom Right)
Green/Red
Multiple Port Configuration
Stacked
Connector & Contact Terminates To
Printed Circuit Board
Grounding Tab Plating Material
Tin over Nickel
Status Indicator
LED
Connector Contact Density
Standard
Wiring Pattern
T568A/T568B
Centerline (Pitch)
.04 in
Profile
Standard
Housing Material
LCP With 30% G.F
PCB Mount Orientation
Right Angle
Shield Material
Copper Alloy
Connector Mounting Type
Board Mount, Panel
Contact Base Material
Phosphor Bronze
Connectors & Connector Components Type
Connector
Operating Temperature Range
-40 to 185°F
Modular Jack & Plug Interface Type
RJ45
