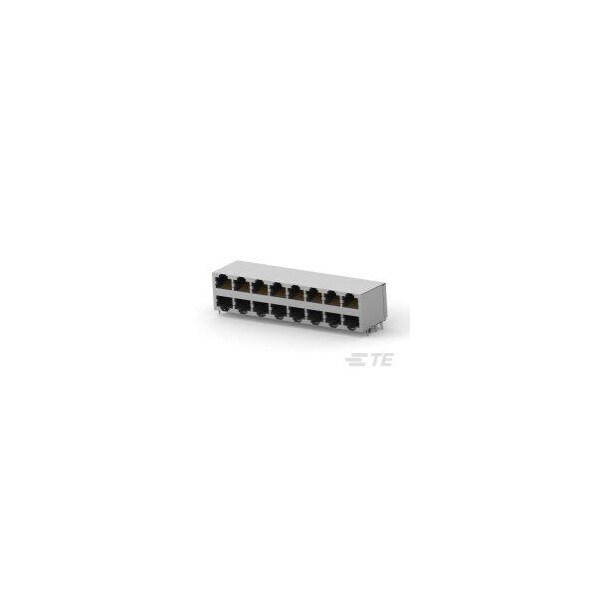

Te Connectivity STK MJ ASSY 8POS 2X8 SHLD CAT5 5569259-1

STK MJ ASSY 8POS 2X8 SHLD CAT5 (Discontinued)

  • Mfr # 5569259-1
  • Zoro # G201034726
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5569259-1
Zoro #
G201034726
UPC #
-
Country of Origin
China

Dimensions

Connector Height
.995 in
PCB Tail Length
.14 in
Contact Mating Area Plating Material Thickness
50µin
PCB Thickness (Recommended)
.062 in

Details

Number of Positions
8
Circuit Application
Signal
Shield Material
Copper Alloy
Connector Mounting Type
Board Mount, Panel
Number of Contacts Loaded
8
Status Indicator
None
Latch Orientation
Standard - Latch Down
Shield Plating Material
Tin over Copper
Connector & Contact Terminates To
Printed Circuit Board
Contact Underplating Material
Nickel
Multiple Port Configuration
Stacked
Operating Temperature Range
-40 to 185°F
Keyed
No
Termination Method to Printed Circuit Board
Through Hole - Solder
Contact Current Rating (Max)
.2 A, 1.5 A
Modular Jack & Plug Interface Type
RJ45
PCB Mount Orientation
Right Angle
Port Configuration
Multiple Ports
Panel Mount Feature
Without
Profile
Low
Performance Category
Cat 5
Modular Jacks & Plugs Products
RJ Type Jacks & Plugs
Grounding Options
PCB Ground
Contact Base Material
Phosphor Bronze
Centerline (Pitch)
.04 in
Connectors & Connector Components Type
Connector
PCB Contact Termination Area Plating Material
Tin
Number of PCB Ground Tabs
13
Housing Material
PCT Polyester
Entry Location
Side
UL Flammability Rating
UL 94V-0
Port Matrix Configuration
2 x 8
Connector Product Type
Connector Assembly
Connector Style
Jack
Shielded
Yes
Grounding Tab Plating Material
Tin over Copper
Contact Mating Area Plating Material
Gold
Connector Contact Density
Standard
Housing Color
Black
