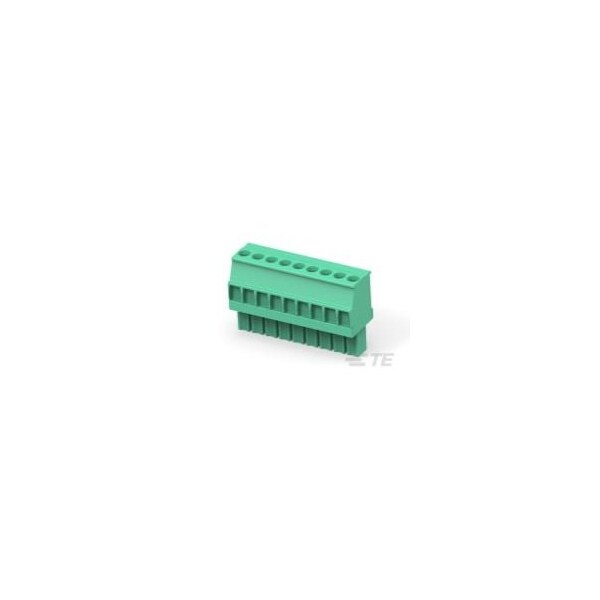

Str Plug 3.5mm Green LH 9
Mfr # 1986371-9
Zoro # G400946301
product price:Â
$
13.15
/ea
Sold in multiples of 15 for $197.25
Key Features
Housing Material
PA 6.6
Number of Positions
9
Screw Size
M2
Applies To
Wire/Cable
Screw Flange
Without
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1986371-9
- Zoro #
- G400946301
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Screw Size
- M2
Details
- Housing Material
- PA 6.6
- Number of Positions
- 9
- Applies To
- Wire/Cable
- Screw Flange
- Without
- Wire Range
- .05 to 2 mm² [ 30 to 14 AWG ]
- Wire Entry Angle
- Side
- Number of Rows
- 1
- Contact Base Material
- Phosphor Bronze
- Screw Material
- Brass
- Centerline
- 3.5 mm [ .138 in ]
- Housing Color
- Green
- Voltage (VAC)
- 300
- Side Stackable
- Yes
- Screw Plating Material
- Nickel
- Connector Style
- Plug
- Mounting Angle
- Vertical
- Block Type
- None
- Screwless Terminal Block
- No
- Interlock
- Without
- Current Rating (Max) (A)
- 11
- Contact Mating Area Plating Material
- Tin
