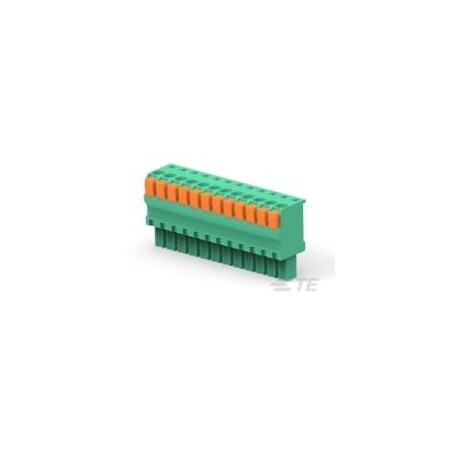

STR PLUG SPRING TYPE LH 12P 3.81mm (Discontinued)
- Mfr # 1-1986722-2
- Zoro # G900945606
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
1-1986722-2
Zoro #
G900945606
UPC #
-
Country of Origin
Italy
Details
Housing Color
Green
Number of Positions
12
Contact Base Material
Copper Alloy
Interlock
Without
Mounting Angle
Vertical
Threaded Flange
Without
Connector Style
Plug
Voltage (VAC)
300
Mating Angle
90° (Bottom)/ 270° (Top)
Current Rating (Max) (A)
9, 11
Centerline
3.81 mm [ .1499 in ]
Shrouded
No
Contact Mating Area Plating Material
Tin over Copper Alloy
Screw Flange
Without
Applies To
Printed Circuit Board
Wire Entry Angle
Top
Lever Color
Orange
Housing Material
Polyamide
Wire Range
.05 to 2 mm² [ 30 to 14 AWG ]
Block Type
Straight
Screwless Terminal Block
Yes
Side Stackable
Yes
Number of Rows
1
