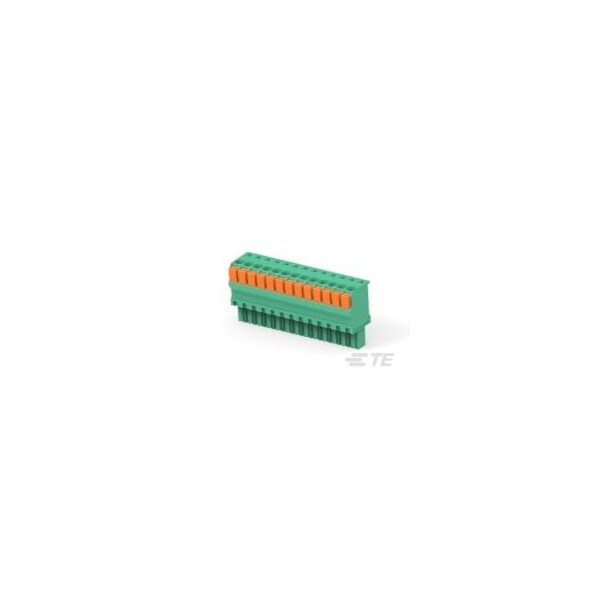

STR PLUG SPRING TYPE RH 13P 3.50mm
- Mfr # 1-1986692-3
- Zoro # G600946088
product price:Â
$
16.19
/ea
Sold in multiples of 4 for
$64.76
Key Features
Wire Entry Angle
Top
Contact Base Material
Copper Alloy
Screw Flange
Without
Voltage (VAC)
300
Housing Color
Green
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1-1986692-3
- Zoro #
- G600946088
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Contact Mating Area Plating Thickness (µm)
- 1 to 3
Details
- Wire Entry Angle
- Top
- Contact Base Material
- Copper Alloy
- Screw Flange
- Without
- Voltage (VAC)
- 300
- Housing Color
- Green
- Mating Angle
- 90° (Bottom)/ 270° (Top)
- Threaded Flange
- Without
- Screwless Terminal Block
- Yes
- Shrouded
- No
- Number of Rows
- 1
- Current Rating (Max) (A)
- 9, 11
- Lever Color
- Orange
- Centerline
- 3.5 mm [ .138 in ]
- Block Type
- Straight
- Housing Material
- Polyamide
- Mounting Angle
- Vertical
- Contact Mating Area Plating Material
- Tin over Copper Alloy
- Number of Positions
- 13
- Connector Style
- Plug
- Side Stackable
- Yes
- Interlock
- Without
- Wire Range
- .05 to 2 mm² [ 30 to 14 AWG ]
