  13. T77S1D3-12
This item is Discontinued.

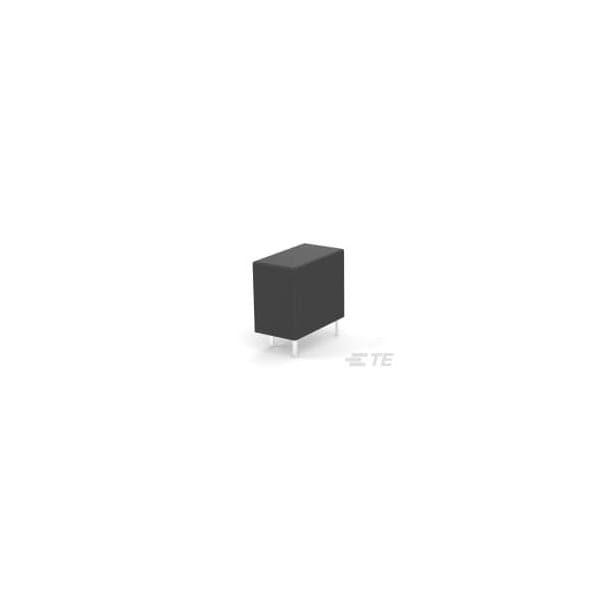

Te Connectivity T77S1D3-12 1-1393194-5

T77S1D3-12 (Discontinued)

  • Mfr # 1-1393194-5
  • Zoro # G700973960
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-1393194-5
Zoro #
G700973960
UPC #
-
Country of Origin
China

Dimensions

Length Class (Mechanical)
16 to 20 mm
Product Width
.4 in
Height Class (Mechanical)
14 to 15 mm
Product Length
.717 in
Width Class (Mechanical)
10 to 12 mm
Product Height
.579 in

Details

Item
General Purpose Relay
Mounting Style
Printed Circuit Board
Electrical Connection
PCB-THT
Coil Voltage
12 VDC
Contact Material
Ag
Contact Limiting Short-Time Current
3A
Contact Current Class
16 A, 2 to 5 A
Contact Number of Poles
1
Contact Limiting Making Current
3A
Environmental Ambient Temperature Class
85 to 105°C
Insulation Initial Dielectric Between Open Contacts
750 Vrms
Power Relay Type
Standard
Environmental Category of Protection
RTIII
Insulation Creepage Between Contact & Coil
.252 in
Insulation Creepage Class
5.5 to 8 mm
Insulation Initial Dielectric Between Contacts & Coil
4000 Vrms
Insulation Clearance Between Contact & Coil
.126 in
Environmental Ambient Temperature (Max)
105°C
Contact Current Rating (Max)
3A
Contact Switching Voltage (Max)
250 VAC, 30 VDC
Insulation Clearance Class
2.5 to 4 mm
Coil Special Features
Sensitive Version
Coil Resistance
720 Ω
Contact Switching Load (Min)
100mA @ 5V
Coil Magnetic System
Monostable, DC
Coil Power Rating DC
200 mW
Contact Limiting Breaking Current
3A
Insulation Initial Dielectric Between Coil & Contact Class
3500 to 4000 V
Contact Voltage Rating
30 VDC, 250 VAC
Contact Limiting Continuous Current
3A
Contact Arrangement
1 Form A (NO)
Coil Power Rating Class
150 to 200 mW
