  13. T81N5D312-05
This item is Discontinued.

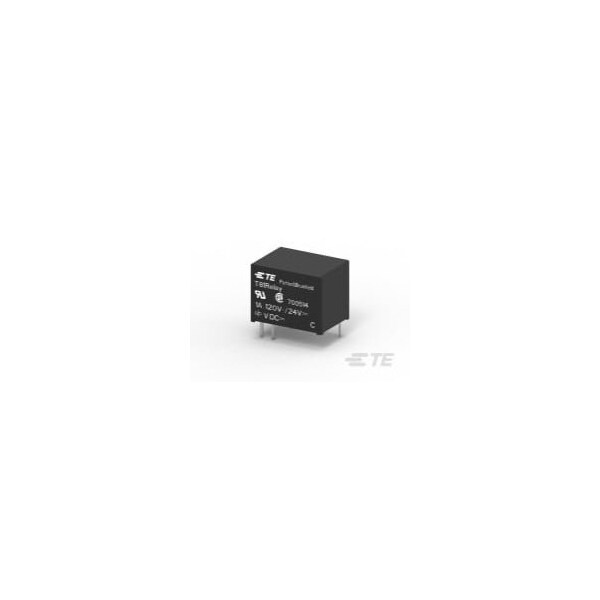

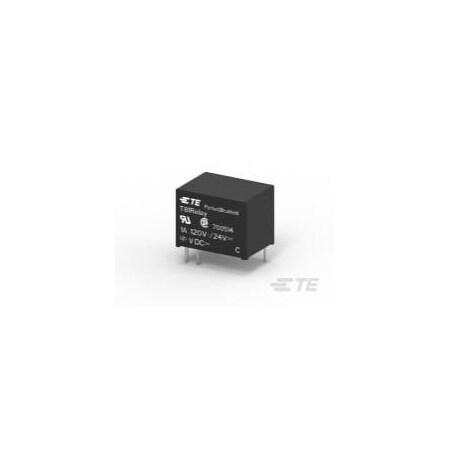

Te Connectivity T81N5D312-05 6-1393779-9

T81N5D312-05 (Discontinued)

  • Mfr # 6-1393779-9
  • Zoro # G001034797
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6-1393779-9
Zoro #
G001034797
UPC #
-
Country of Origin
Mexico

Details

Item
General Purpose Relay
Mounting Style
PCB
Electrical Connection
Through Hole
Coil Voltage
5V DC
Contact Form
1 Form C (CO)
Features
Standard Type
Contact Material
Nickel-Palladium Alloy
Number of Poles
1
Power Consumption - Relay
450 mW
Item - Relay
T81 Signal Relay
Contact Limiting Short-Time Current
1A
Insulation Clearance
.059 in
Switching Current
1mA @ 1V
Insulation Creepage
.069 in
Protection Category
RTIII
Operating Temp. Range
-30 to 60°C
Contact Rating
1A
Dielectric Voltage
1000 Vrms Coil and Contact; 500 Vrms Open Contacts
Switching Voltage
125 VAC, 60 VDC
Contact Voltage Rating
120 VAC, 24 VDC
Contact Limiting Continuous Current
2A
Coil Type
Monostable, AC/DC
Coil Resistance
55 Ω
Contact Limiting Breaking Current
1A
Contact Limiting Making Current
1A
