Contact our U.S. based teamSpecifications
Product Information
MFR #
2-1419104-5
Zoro #
G101034123
UPC #
-
Country of Origin
China
Details
Item

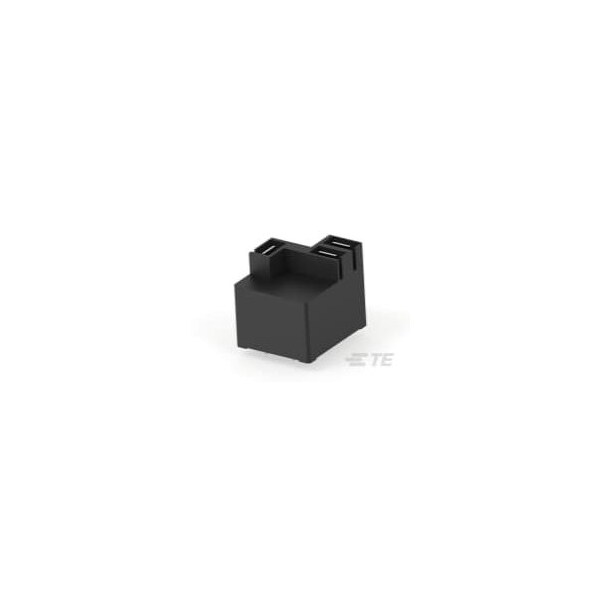

Power Relay
Mounting Style
PCB
Electrical Connection
Quick Connect
Coil Voltage
12V DC
Contact Form
1 Form A (NO)
Power Consumption - Relay
900 mW
Contact Material
AgCdO
Features
UL Coil Insulation Class F
Number of Poles
1
Coil Type
Monostable, DC
Contact Rating
30 A
Contact Limiting Continuous Current
30 A
Contact Voltage Rating
277 VAC
Dielectric Voltage
2500 Vrms Coil and Contact; 1500 Vrms Open Contacts
Switching Current
1000mA @ 5V
Switching Voltage
277 VAC
Insulation Creepage
.25 in
Operating Temp. Range
70 to 85°C
Insulation Clearance
.125 in
Contact Limiting Short-Time Current
30 A
Coil Resistance
155 Ω
Contact Limiting Making Current
30 A
Protection Category
RTIII
Contact Limiting Breaking Current
30 A
