Contact our U.S. based teamSpecifications
Product Information
MFR #
2027395-1
Zoro #
G001033790
UPC #
-
Country of Origin
China
Details
Item

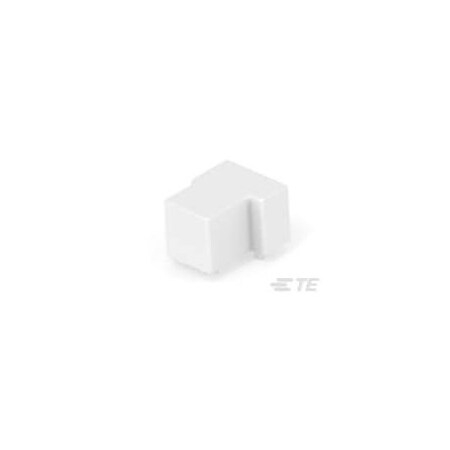

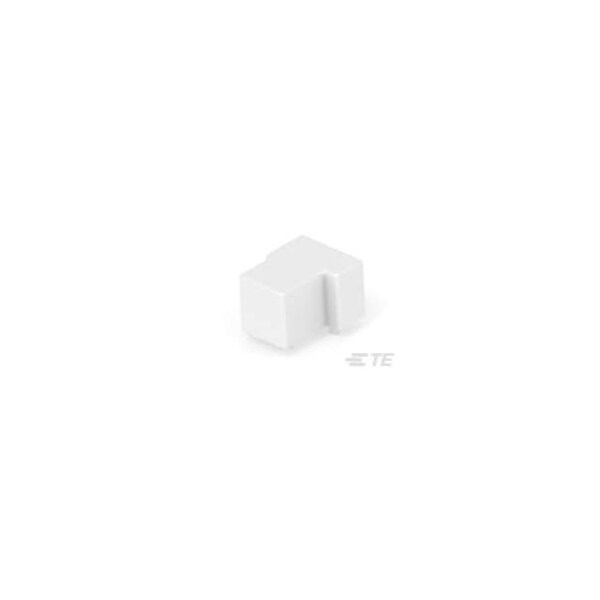

Power Relay
Mounting Style
PCB
Electrical Connection
PCB-THT
Coil Voltage
12V DC
Contact Form
1 Form A (NO)
Contact Material
AgNi
Power Consumption - Relay
2250 mW
Number of Poles
1
Features
UL Coil Insulation Class F; 1.5mm Contact Gap
Contact Limiting Breaking Current
35 A
Contact Limiting Short-Time Current
35 A
Insulation Clearance
.118 in
Contact Voltage Rating
277 VAC
Insulation Creepage
.157 in
Dielectric Voltage
4000 Vrms Coil and Contact; 2500 Vrms Open Contacts
Coil Type
Monostable, DC
Operating Temp. Range
70 to 85°C
Contact Limiting Making Current
35 A
Protection Category
RTII
Coil Resistance
64 Ω
Contact Limiting Continuous Current
35 A
Contact Rating
35 A
