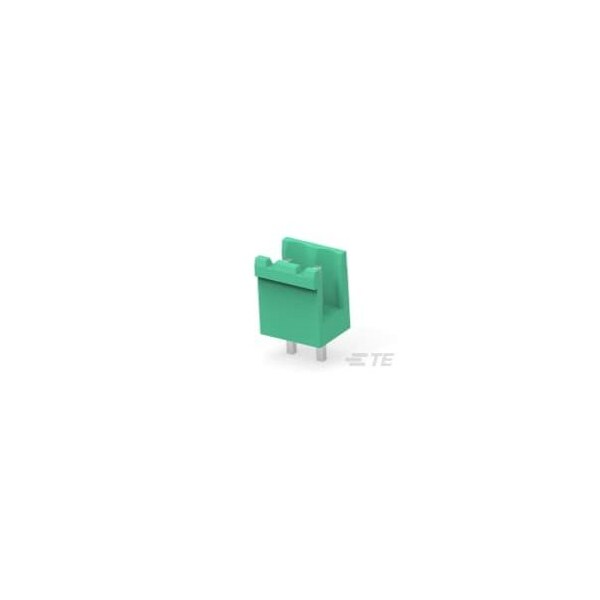

TERMI-BLOK HEADER ASSY90 2P.5
Mfr # 282825-2
Zoro # G300929930
product price:Â
$
0.82
/ea
Sold in multiples of 172 for $141.04
Key Features
Mating Angle
180°
Centerline
5.08 mm [ .2 in ]
Contact Base Material
Copper Alloy
Connector Style
Header
PCB Tail Length
3.5 mm [ .138 in ]
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 282825-2
- Zoro #
- G300929930
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- PCB Tail Length
- 3.5 mm [ .138 in ]
Details
- Mating Angle
- 180°
- Centerline
- 5.08 mm [ .2 in ]
- Contact Base Material
- Copper Alloy
- Connector Style
- Header
- Shrouded
- Yes
- Closed End
- Without
- Screwless Terminal Block
- No
- Interlock
- Without
- Applies To
- Printed Circuit Board
- Number of Rows
- 1
- Contact Mount
- Through Hole
- Current Rating (Max) (A)
- 15
- Mounting Angle
- Vertical
- Side Stackable
- Yes
- Number of Positions
- 2
- Threaded Flange
- Without
- Housing Color
- Green
- Voltage (VAC)
- 300
- Contact Mating Area Plating Material
- Gold
- Screw Flange
- Without
- Housing Material
- Polyamide 6.6 GF
- Block Type
- None
