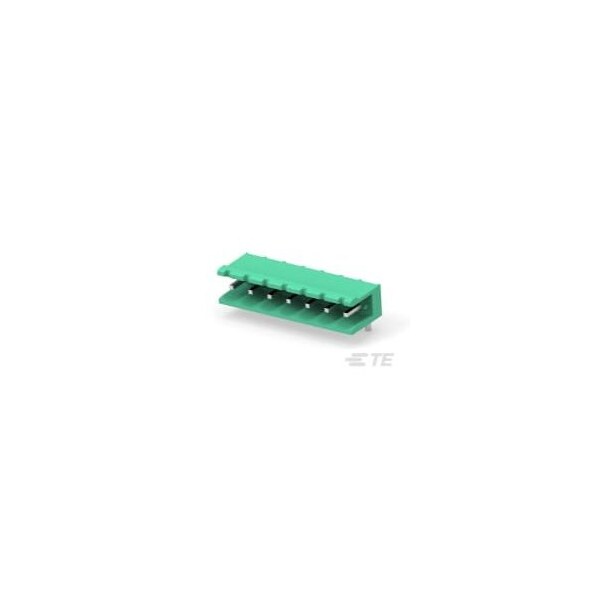

TERMI-BLOK HEADER ASSY90 7P.5
Mfr # 282815-7
Zoro # G100930136
product price:Â
$
2.15
/ea
Sold in multiples of 1200 for $2,580.00
Key Features
Interlock
Without
Voltage (VAC)
300
Screw Flange
Without
Closed End
Without
Mounting Angle
Right Angle
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 282815-7
- Zoro #
- G100930136
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- PCB Tail Length
- 3.5 mm [ .138 in ]
Details
- Interlock
- Without
- Voltage (VAC)
- 300
- Screw Flange
- Without
- Closed End
- Without
- Mounting Angle
- Right Angle
- Contact Base Material
- Copper Alloy
- Block Type
- None
- Applies To
- Printed Circuit Board
- Current Rating (Max) (A)
- 15
- Contact Mount
- Through Hole
- Centerline
- 5.08 mm [ .2 in ]
- Side Stackable
- Yes
- Contact Mating Area Plating Material
- Tin
- Number of Positions
- 7
- Mating Angle
- 90°
- Connector Style
- Header
- Threaded Flange
- Without
- Housing Material
- Polyamide 6.6 GF
- Housing Color
- Green
- Screwless Terminal Block
- No
- Shrouded
- Yes
- Number of Rows
- 1
