  11. TERMI-BLOK PCB MOUNT 10P.
This item is Discontinued.

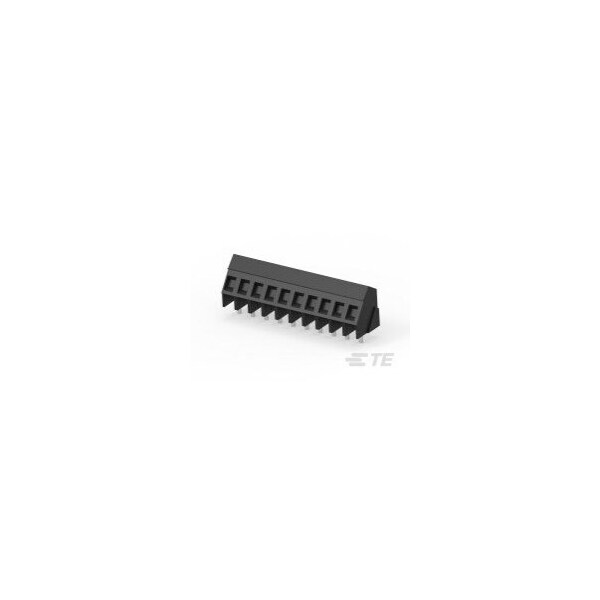

Te Connectivity TERMI-BLOK PCB MOUNT 10P. 1-796689-0

TERMI-BLOK PCB MOUNT 10P. (Discontinued)

  • Mfr # 1-796689-0
  • Zoro # G700929950
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-796689-0
Zoro #
G700929950
UPC #
-
Country of Origin
Italy

Dimensions

PCB Tail Length
.15 in
Screw Size
M3

Details

Voltage
300 VAC
Screw Flange
Without
Housing Color
Black
Screw Material
Brass
Screwless Terminal Block
No
Housing Material
PA 66
Block Type
Stacking w/interlock
Stacked Levels
Without
Side Stackable
Yes
Wire Entry Angle
35°
Connector Style
Header
Wire Protection
With
Contact Mating Area Plating Material
Tin
Contact Base Material
Brass
Centerline (Pitch)
.197 in
Screw Plating Material
Nickel
Wire Range
30 to 12 AWG
Operating Temperature Range
-40 to 110°C
Connector & Contact Terminates To
Printed Circuit Board
Circuit Application
Power & Signal
Connector System
Wire-to-Board
Closed End
Without
Number of Positions
10
Number of Rows
1
Connector Mounting Type
Board Mount
Interlock
With
Contact Mount
Through Hole
Mounting Angle
Straight
Threaded Flange
Without
Current Rating (Max)
17.5 A
Contact Current Rating (Max)
17.5 A
