This item is Discontinued.

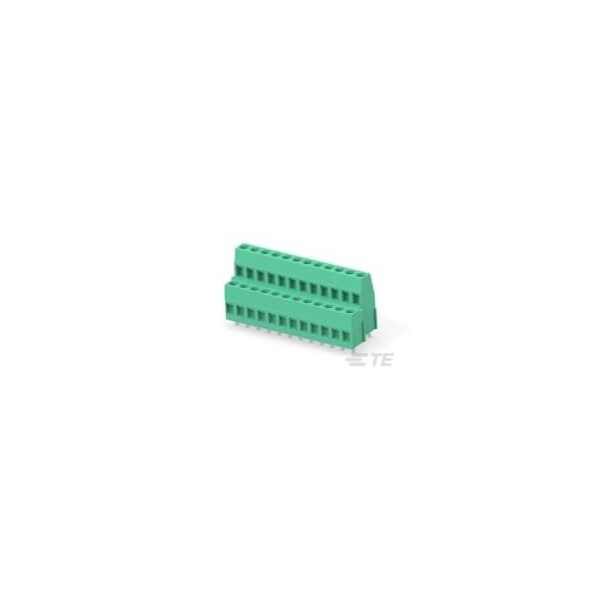

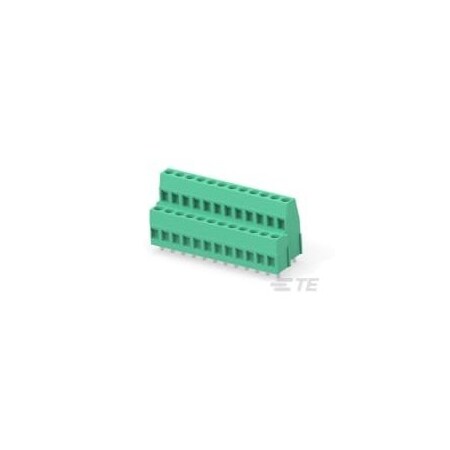

Te Connectivity TERMI-BLOK PCB MOUNT 1&2 12P.5 1-796692-2

TERMI-BLOK PCB MOUNT 1&2 12P.5 (Discontinued)

  • Mfr # 1-796692-2
  • Zoro # G800929980
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-796692-2
Zoro #
G800929980
UPC #
-
Country of Origin
Italy

Dimensions

Screw Size
M3
PCB Tail Length
.15 in

Details

Voltage
300 VAC
Operating Temperature Range
-40 to 110°C
Header Type
Header Only
Contact Mount
Through Hole
Side Stackable
Yes
Closed End
Without
Current Rating (Max)
17.5 A
Connector System
Wire-to-Board
Stacked Levels
Level 1/Level 2
Number of Rows
2
Block Type
None
Connector Mounting Type
Board Mount
Connector Style
Header
Contact Mating Area Plating Material
Tin
Contact Base Material
Brass
Screw Flange
Without
Contact Current Rating (Max)
17.5 A
Centerline (Pitch)
.2 in
Number of Positions
12
Wire Entry Angle
Side
Wire Protection
With
Screw Plating Material
Nickel
Wire Range
30 to 12 AWG
Housing Material
PA 66
Screw Material
Brass
Circuit Application
Power & Signal
Housing Color
Green
Mounting Angle
Vertical
Screwless Terminal Block
No
Connector & Contact Terminates To
Printed Circuit Board
Interlock
With
