This item is Discontinued.

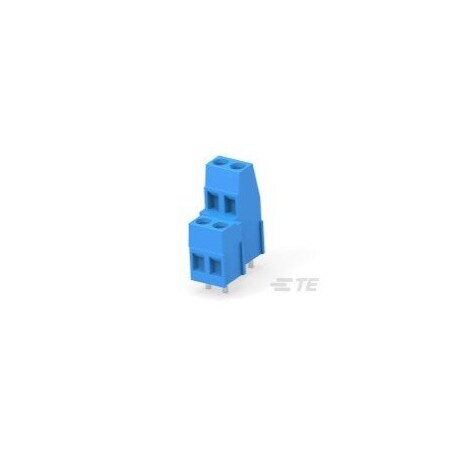

Te Connectivity TERMI-BLOK PCB MOUNT 1&2 2P. 5 796691-2

TERMI-BLOK PCB MOUNT 1&2 2P. 5 (Discontinued)

  • Mfr # 796691-2
  • Zoro # G100929864
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
796691-2
Zoro #
G100929864
UPC #
-
Country of Origin
Italy

Dimensions

Screw Size
M3
PCB Tail Length
3.8 mm [ .15 in ]

Details

Screw Plating Material
Nickel
Wire Range
.05 to 3 mm² [ 30 to 12 AWG ]
Screw Material
Brass
Housing Color
Blue
Marking Color
Black
Closed End
Without
Mounting Angle
Vertical
Block Type
None
Current Rating (Max) (A)
17.5
Interlock
With
Screw Flange
Without
Connector Style
Receptacle
Applies To
Printed Circuit Board
Contact Mating Area Plating Material
Tin
Contact Base Material
Brass
Wire Entry Angle
Side
Screwless Terminal Block
No
Side Stackable
Yes
Voltage (VAC)
300
Contact Mount
Through Hole
Stacked Levels
Level 1/Level 2
Centerline
5 mm [ .197 in ]
Number of Positions
2
Housing Material
Polyamide 6.6 GF
Number of Rows
2

Description
