Shop TE CONNECTIVITY

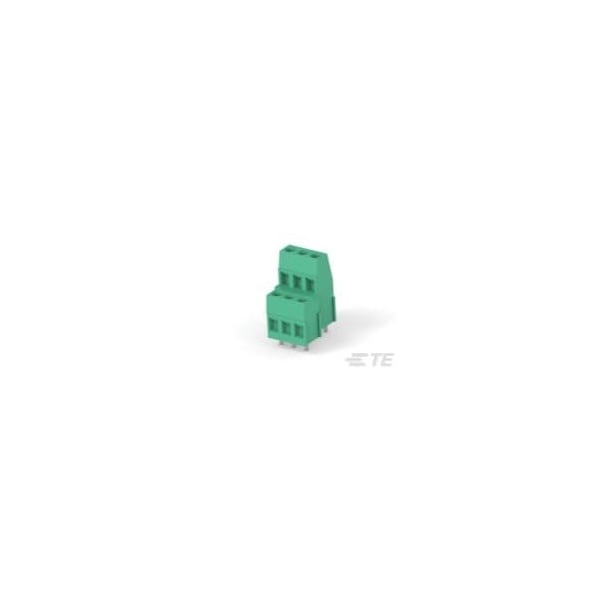

TERMI-BLOK PCB MOUNT 1&2 3P. 5

  • Mfr # 282888-3
  • Zoro # G700930116
product price:
$
7.25
/ea
Sold in multiples of 16 for $116.00

Key Features

Voltage
300 VAC
Connector Style
Header
Screw Material
Brass
Closed End
Without
Wire Entry Angle
Side
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
282888-3
Zoro #
G700930116
UPC #
-
Country of Origin
Italy

Dimensions

Screw Size
M3
PCB Tail Length
.15 in

Details

Voltage
300 VAC
Connector Style
Header
Screw Material
Brass
Closed End
Without
Wire Entry Angle
Side
Connector Mounting Type
Board Mount
Operating Temperature Range
-40 to 110°C
Interlock
With
Marking Color
White
Wire Range
30 to 12 AWG
Mounting Angle
Vertical
Screw Plating Material
Nickel
Number of Rows
2
Stacked Levels
Level 1/Level 2
Contact Mating Area Plating Material
Tin
Circuit Application
Power & Signal
Number of Positions
3
Current Rating (Max)
17.5 A
Centerline (Pitch)
.197 in
Contact Mount
Through Hole
Connector System
Wire-to-Board
Block Type
Stacking w/interlock
Screw Flange
Without
Side Stackable
Yes
Contact Current Rating (Max)
17.5 A
Connector & Contact Terminates To
Printed Circuit Board
Screwless Terminal Block
Yes
Contact Base Material
Brass
Housing Material
PA 6.6
Housing Color
Green
