  11. TERMI-BLOK PCB MOUNT 90 12P.
This item is Discontinued.

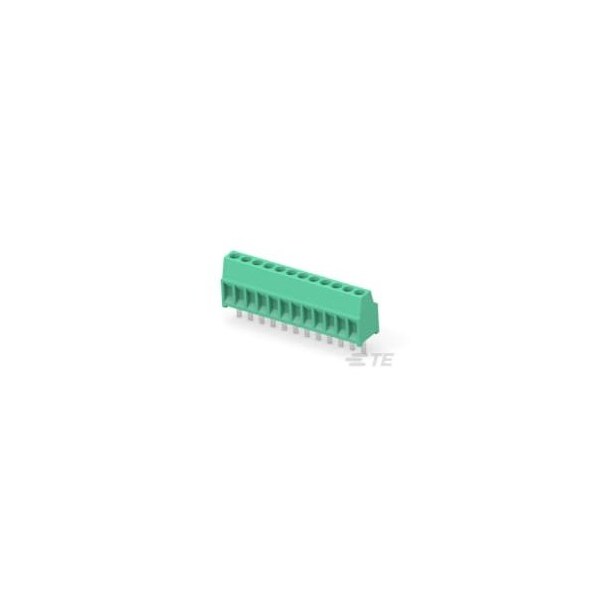

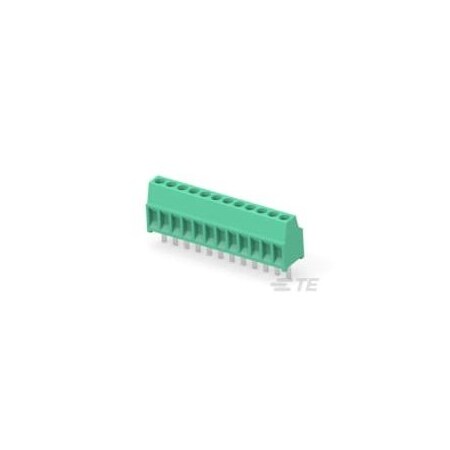

Te Connectivity TERMI-BLOK PCB MOUNT 90 12P. 1-282834-2

TERMI-BLOK PCB MOUNT 90 12P. (Discontinued)

  • Mfr # 1-282834-2
  • Zoro # G100930082
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-282834-2
Zoro #
G100930082
UPC #
-
Country of Origin
Italy

Dimensions

PCB Tail Length
.133 in
Screw Size
M1.6

Details

Voltage
150 VAC
Screw Plating Material
Nickel
Screw Material
Brass
Circuit Application
Power & Signal
Side Stackable
Yes
Contact Current Rating (Max)
10A
Connector System
Wire-to-Board
Housing Color
Green
Stacked Levels
Without
Header Type
Header Only
Contact Mating Area Plating Material
Tin
Housing Material
PA 66
Contact Base Material
Brass
Operating Temperature Range
-40 to 230°F
Contact Mount
Through Hole
Mounting Angle
Straight
Interlock
Without
Number of Positions
12
Wire Protection
With
Wire Range
30 to 16 AWG
Screw Flange
Without
Screwless Terminal Block
No
Centerline (Pitch)
.1 in
Number of Rows
1
Current Rating (Max)
10A
Connector Mounting Type
Board Mount
Block Type
Stacking
Connector Style
Header
Closed End
Without
Wire Entry Angle
Side
Connector & Contact Terminates To
Printed Circuit Board
