This item is Discontinued.

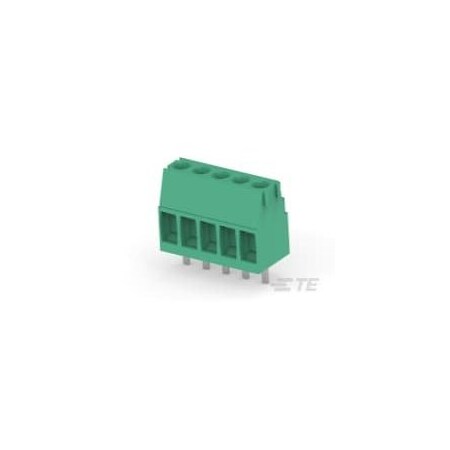

Te Connectivity TERMI-BLOK PCB SIDE ENTRY STAC 284391-5

TERMI-BLOK PCB SIDE ENTRY STAC (Discontinued)

  • Mfr # 284391-5
  • Zoro # G100929970
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
284391-5
Zoro #
G100929970
UPC #
-
Country of Origin
Italy

Dimensions

Screw Size
M3
PCB Tail Length
.138 in

Details

Voltage
300 VAC
Wire Range
30 to 14 AWG
Screw Plating Material
Nickel
Interlock
With
Screw Flange
Without
Current Rating (Max)
12A
Circuit Application
Power & Signal
Wire Protection
With
Housing Material
PA 66
Threaded Flange
Without
Block Type
Stacking w/interlock
Number of Rows
1
Contact Current Rating (Max)
12A
Screwless Terminal Block
No
Screw Material
Brass
Stacked Levels
Without
Housing Color
Green
Connector Style
Header
Contact Base Material
Brass
Contact Mount
Through Hole
Contact Mating Area Plating Material
Tin
Number of Positions
5
Connector & Contact Terminates To
Printed Circuit Board
Wire Entry Angle
Side
Connector System
Wire-to-Board
Side Stackable
Yes
Centerline (Pitch)
.138 in
Mounting Angle
Straight
Connector Mounting Type
Board Mount
Closed End
Without
Operating Temperature Range
-40 to 110°C
