  11. TERMI-BLOK PCB SIDE ENTRY STAC
This item is Discontinued.

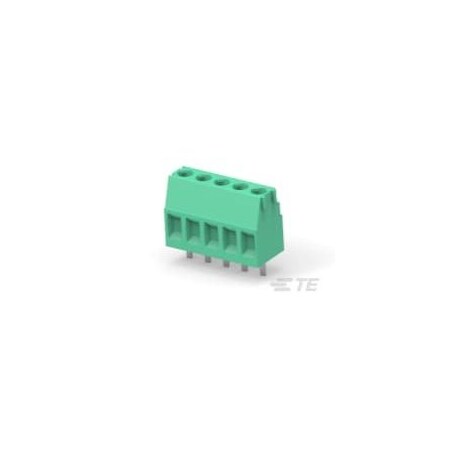

Te Connectivity TERMI-BLOK PCB SIDE ENTRY STAC 284392-5

TERMI-BLOK PCB SIDE ENTRY STAC (Discontinued)

  • Mfr # 284392-5
  • Zoro # G900930022
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
284392-5
Zoro #
G900930022
UPC #
-
Country of Origin
Italy

Dimensions

Screw Size
M3
PCB Tail Length
3.5 mm [ .138 in ]

Details

Wire Range
.05 to 2 mm² [ 30 to 14 AWG ]
Housing Material
Polyamide 6.6
Number of Positions
5
Housing Color
Green
Screw Plating Material
Nickel
Wire Entry Angle
Side
Centerline
3.81 mm [ .1499 in ]
Number of Rows
1
Contact Base Material
Brass
Side Stackable
Yes
Screwless Terminal Block
No
Contact Mount
Through Hole
Closed End
Without
Voltage (VAC)
300
Current Rating (Max) (A)
12
Stacked Levels
Without
Screw Flange
Without
Applies To
Printed Circuit Board
Interlock
With
Mounting Angle
Vertical
Block Type
None
Screw Material
Brass
Connector Style
Receptacle
Contact Mating Area Plating Material
Tin
