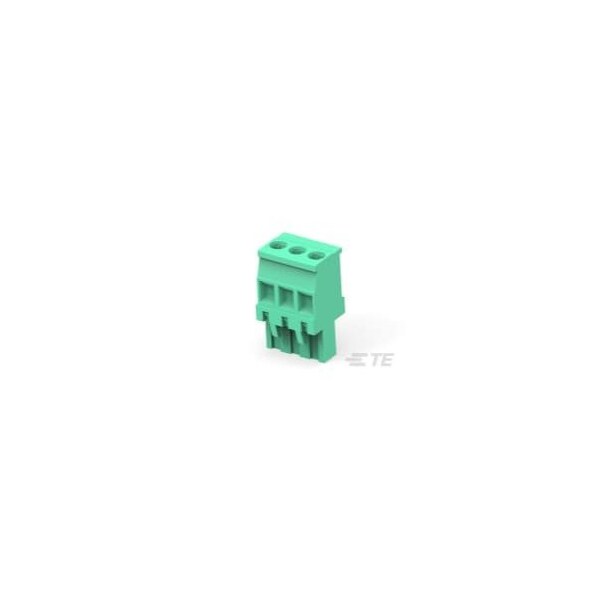

TERMI-BLOK VERTICAL PLUG STACK
Mfr # 284047-3
Zoro # G300930196
product price:Â $2.59
/ea
Sold in multiples of 36 for $93.24
Key Features
Contact Base Material
Phosphor Bronze
Screw Size
M3
Applies To
Wire/Cable
Block Type
None
Number of Positions
3
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 284047-3
- Zoro #
- G300930196
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Screw Size
- M3
Details
- Contact Base Material
- Phosphor Bronze
- Applies To
- Wire/Cable
- Block Type
- None
- Number of Positions
- 3
- Mounting Angle
- Vertical
- Wire Range
- .05 to 3 mm² [ 30 to 12 AWG ]
- Wire Entry Angle
- Side
- Interlock
- Without
- Contact Mating Area Plating Material
- Tin
- Housing Material
- PA 6.6
- Voltage (VAC)
- 300
- Current Rating (Max) (A)
- 15
- Housing Color
- Green
- Screwless Terminal Block
- No
- Screw Plating Material
- Nickel
- Screw Material
- Brass
- Connector Style
- Plug
- Number of Rows
- 1
- Screw Flange
- Without
- Stacked Levels
- Without
- Side Stackable
- Yes
- Centerline
- 5.08 mm [ .2 in ]
