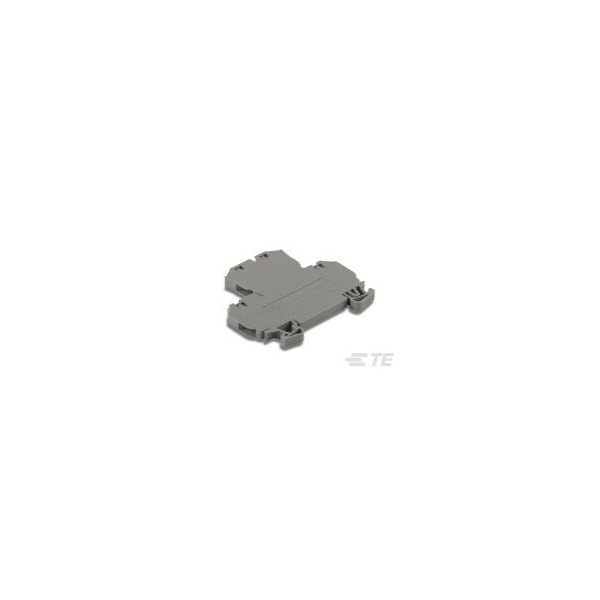

Terminal Block, 20 A, 600 V AC, 12 AWG
Mfr # 2271695-1
Zoro # G805797737
product price:Â
$
23.49
/ea
Sold in multiples of 10 for $234.90
Key Features
Mounting Type
DIN
Connection Type
Quick Connect
Current
20 A
Maximum Voltage
600 V AC
For Minimum Wire Size
22 AWG
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 2271695-1
- Zoro #
- G805797737
- UPC #
- -
- Country of Origin
- China
Dimensions
- For Minimum Wire Size
- 22 AWG
- For Maximum Wire Size
- 12 AWG
- Screw Size
- M2.6
Details
- Item
- Terminal Block
- Mounting Type
- DIN
- Connection Type
- Quick Connect
- Current
- 20 A
- Maximum Voltage
- 600 V AC
- Contact Current Rating (Max)
- 20 A
- Modular Terminal Block Product Type
- Screw Terminal Block
- Circuit Application
- Power
- Number of Positions
- 2
- Contact Base Material
- Brass
- Tightening Torque
- 5 in-lbs
- Number of Circuits
- 1
- Block Type
- Standard
- Screw Base Material
- Steel
- Operating Temperature Range
- -40 to 105°C
- UL Flammability Rating
- UL 94V-0
- Screw Plating Material
- Zinc
- Centerline (Pitch)
- .197 in
- Sealable
- No
- Contact Plating Material
- Tin
