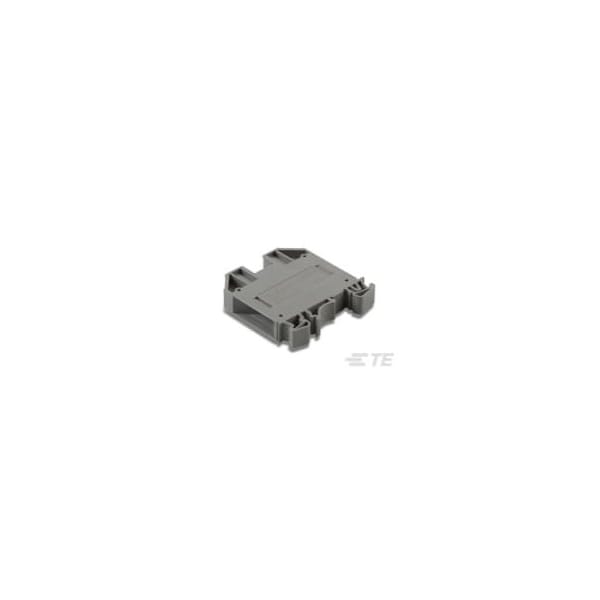

Terminal Block, 78 A, 600 V AC, 4 AWG
Mfr # 2271685-2
Zoro # G105797994
product price: $12.19
/eaSold in multiples of 15 for $182.85
Key Features
Mounting Type
DIN
Connection Type
Quick Connect
Current
78 A
Maximum Voltage
600 V AC
For Minimum Wire Size
14 AWG
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
2271685-2
Zoro #
G105797994
UPC #
-
Country of Origin
China
Dimensions
For Minimum Wire Size
14 AWG
For Maximum Wire Size
4 AWG
Screw Size
M5
Details
Item
Terminal Block
Mounting Type
DIN
Connection Type
Quick Connect
Current
78 A
Maximum Voltage
600 V AC
Centerline (Pitch)
.472 in
Screw Plating Material
Zinc
Block Type
Standard
Screw Base Material
Steel
Operating Temperature Range
-40 to 105°C
Number of Circuits
1
Contact Plating Material
Tin
Tightening Torque
31 in-lbs
UL Flammability Rating
UL 94V-0
Number of Positions
1
Circuit Application
Power
Sealable
No
Modular Terminal Block Product Type
Screw Terminal Block
Contact Current Rating (Max)
78 A
Contact Base Material
Copper
