Product Information
MFR #
1934348-1
Zoro #
G501064379
UPC #
-
Country of Origin
China
Dimensions
Length
33.25 mm
Width
36.61 mm
Height
24.4 mm
Hole Dia.
0.47 mm
Details

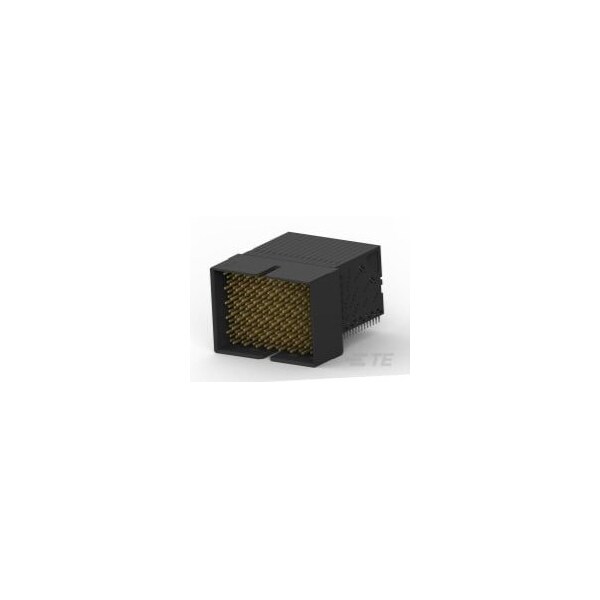

Item
Connector
For Use With
Receptacle Assembly
Max. Voltage
250V AC
Max. Temp.
90°C
Application
Signal
Standards
UL E28476; UL Recognized
Color
Black
Material
Liquid Crystal Polymer
Number of Contacts
240
Connection Material
Phosphor Bronze
Contact Finish
Gold Plated
Number of Rows
15
Terminal Type
Through Hole - Press-Fit
Terminal Finish
Matte Tin Plated
Current Rating
0.5 A
Hole Center to Center
1.9 mm
Connector Type
Header
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-0
Contact Type
Pin
