Contact our U.S. based teamSpecifications
Product Information
MFR #
2-1393774-0
Zoro #
G301033711
UPC #
-
Country of Origin
Mexico
Details

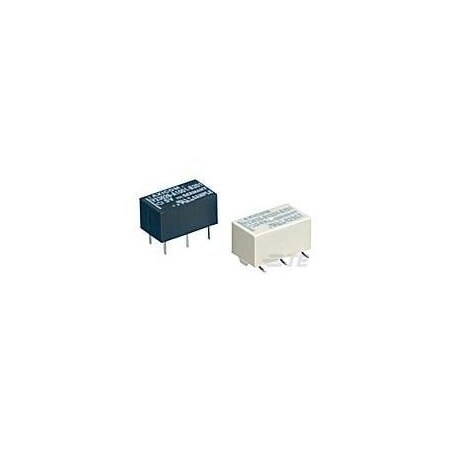

Item
PCB Relay
Electrical Connection
Through Hole
Coil Voltage
24V AC
Current Rating
1 A
Contact Rating (AC)
.5 A @ 150V AC
Number of Poles
1
Contact Material
Ruthenium
Power Consumption - Relay
30 to 150 mW
Features
Bifurcated/Twin Contacts; Standard Type
Contact Limiting Breaking Current
1A
Contact Limiting Continuous Current
1A
Insulation Creepage
.0295 in
Coil Resistance
740 Ω
Protection Category
RTIII
Switching Current
10mA @ .02V
Operating Temp. Range
-40 to 85°C
Dielectric Voltage
1500 Vrms Coil and Contact; 500 Vrms Open Contacts
Insulation Clearance
.0295 in
Contact Limiting Short-Time Current
1A
Switching Voltage
125 VDC, 150 VAC
Contact Voltage Rating
150 VAC, 125 VDC
Coil Type
Bistable, 1 Coil, Polarized
Contact Rating
.5 A
Contact Limiting Making Current
1A
