This item is Discontinued.

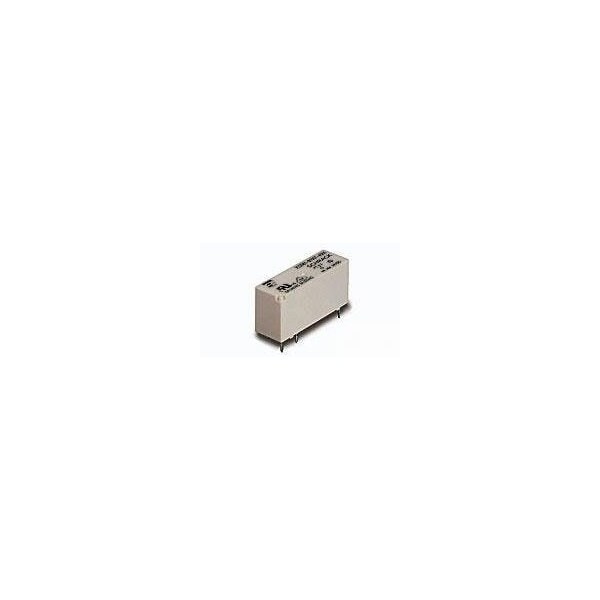

V23061A1004A302=MINISTARKSTROM (Discontinued)
-
Mfr #
1-1393222-5
-
Zoro #
G400973253
Shop for similar items
Specifications
Length
28.6 mm [ 1.126 in ]
Height
15.01 mm [ .591 in ]
Item
General Purpose Relay
Electrical Connection
PCB-THT
Contact Current Class
5 to 10 A, Less Than 16A
Contact Arrangement
1 Form A (NO)
Environmental Ambient Temperature (Max)
85 °C [ 185 °F ]
Insulation Clearance Class
5 to 8mm
Insulation Creepage Class
5.5 to 8mm
Contact Limiting Continuous Current (A)
8
Contact Switching Voltage (Max) (VAC)
400
Insulation Initial Dielectric Between Open Contacts (Vrms)
1000
Coil Power Rating Class
200 to 300 mW
Contact Limiting Breaking Current (A)
8
Coil Magnetic System
Monostable, DC
Contact Limiting Short-Time Current (A)
8
Insulation Initial Dielectric Between Contacts and Coil (Vrms)
4000
Insulation Creepage Between Contact and Coil
8 mm [ .315 in ]
Contact Current Rating (A)
8
Environmental Ambient Temperature Class
70 to 85°C
Environmental Category of Protection
RTIII
Coil Power Rating (DC) (mW)
223
Contact Limiting Making Current (A)
15
Contact Voltage Rating (VAC)
250
Coil Special Features
UL Coil Insulation Class A
Insulation Initial Dielectric Between Coil/Contact Class
3500 to 4000 V
Insulation Clearance Between Contact and Coil
8 mm [ .315 in ]
Contact Number of Poles
1
