Product Information
MFR #
4-1393236-3
Zoro #
G301034831
UPC #
-
Country of Origin
Mexico
Details
Item

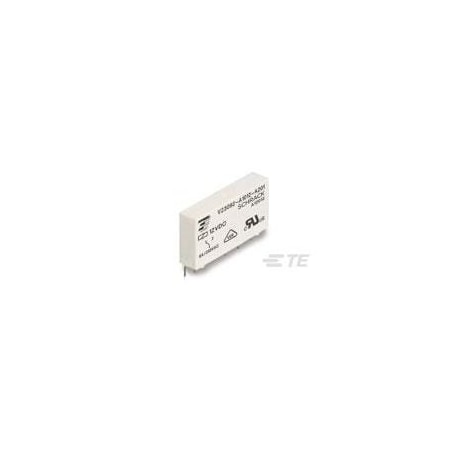

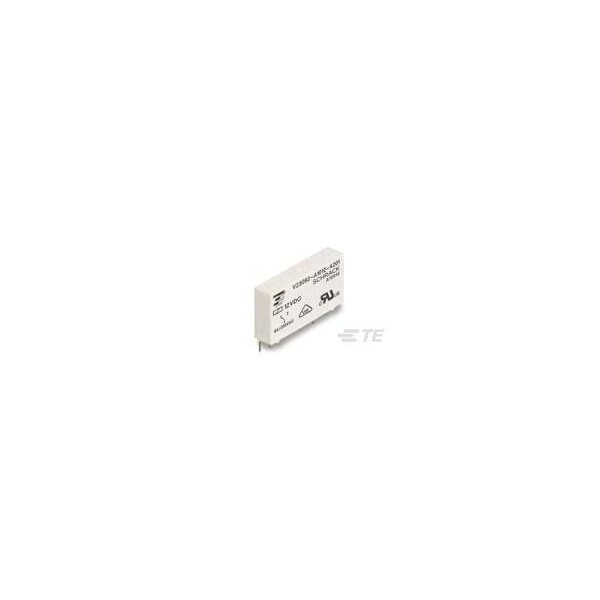

PCB Relay
Mounting Style
PCB
Electrical Connection
PCB-THT
Coil Voltage
60V DC
Contact Form
1 Form C (CO)
Contact Material
AgSnO
Number of Poles
1
Power Consumption - Relay
176 mW
Protection Category
RTIII
Dielectric Voltage
4000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Insulation Creepage
8 mm [ .315 in ]
Contact Voltage Rating
250V AC
Coil Type
Monostable, DC
Coil Resistance
20500 Ω
Operating Temp. Range
70 to 85°C
Contact Rating
6A
Switching Voltage
400V AC
Contact Limiting Breaking Current
6A
Contact Limiting Making Current
10A
Switching Current
100mA @ 12V
Contact Limiting Short-Time Current
6A
Insulation Clearance
6 mm [ .236 in ]
Contact Limiting Continuous Current
10A
