Product Information
MFR #
1393203-4
Zoro #
G101034529
UPC #
-
Country of Origin
Slovenia
Details
Item

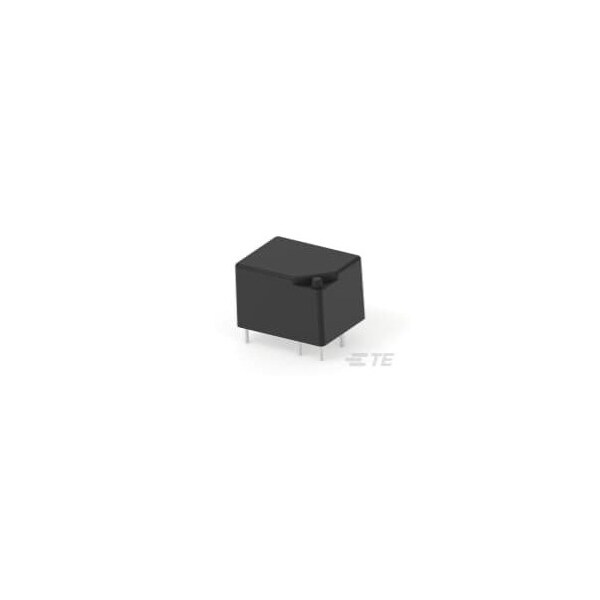

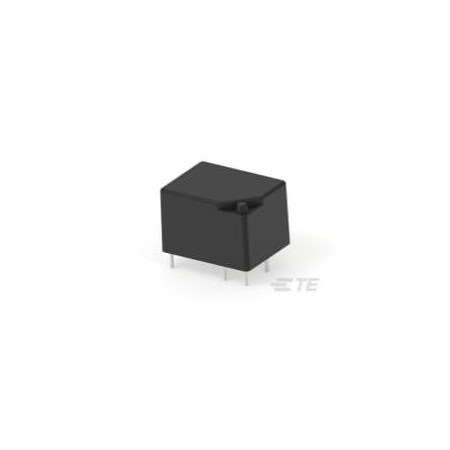

PCB Relay
Mounting Style
PCB
Electrical Connection
PCB-THT
Coil Voltage
6V DC
Contact Form
1 Form C (CO)
Contact Material
AgNi90/10
Power Consumption - Relay
450 mW
Number of Poles
1
Contact Limiting Breaking Current
7A
Contact Limiting Making Current
12A
Operating Temp. Range
50 to 70°C
Coil Resistance
80 Ω
Contact Limiting Continuous Current
7A
Contact Voltage Rating
250V AC
Insulation Creepage
2.5 mm [ .098 in ]
Contact Rating
7A
Coil Type
Monostable, DC
Protection Category
RTIII
Contact Limiting Short-Time Current
7A
Dielectric Voltage
2000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Switching Voltage
400V AC
Insulation Clearance
2.5 mm [ .098 in ]
