  9. VARIANT 14 METAL PLUG. RJ45.CAT5E.8POS.
This item is Discontinued.

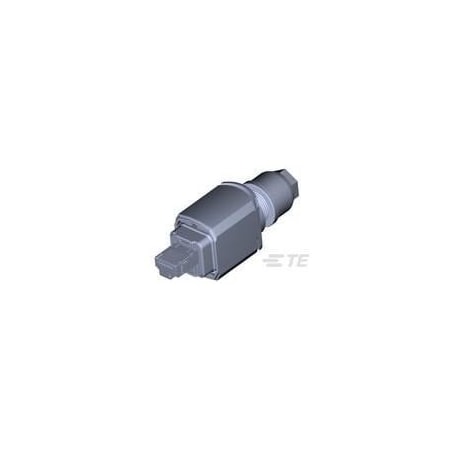

Te Connectivity VARIANT 14 METAL PLUG. RJ45.CAT5E.8POS. 2120864-1

VARIANT 14 METAL PLUG. RJ45.CAT5E.8POS. (Discontinued)

  • Mfr # 2120864-1
  • Zoro # G201034146
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2120864-1
Zoro #
G201034146
UPC #
-
Country of Origin
Poland

Dimensions

Cable Diameter Range
5.5 to 8 mm
Wire Size
22 to 26 AWG

Details

Number of Positions
8
Shield Material
Copper Zinc Alloy
Shielded
Yes
Solid Wire Range
22 to 26 AWG
Shield Plating Material
Nickel
Cutoff
Without
Modular Jack & Plug Interface Type
RJ45
Connector Contact Density
Standard
Connector Product Type
Connector Kit
Connectors & Connector Components Type
Connector
Performance Category
Cat 5e
Port Matrix Configuration
1 x 1
Housing Material Temperature
Standard
Profile
Standard
Port Configuration
Single Port
Contact Base Material
Copper Alloy
Wiring Pattern
T568A/T568B
Number of Contacts Loaded
8
Modular Jacks & Plugs Products
RJ Type Jacks & Plugs
UL Flammability Rating
UL 94V-0
Termination Method to Wire & Cable
Insulation Displacement Crimp (IDC)
Status Indicator
None
Contact Mating Area Plating Material
Gold over Nickel
Connector Style
Plug
Keyed
Yes
Housing Color
Black
Connector & Contact Terminates To
Wire & Cable
Stranded Wire Range
22 to 26 AWG
Latch Orientation
Standard - Latch Down
